M-XL-4-14

Active

ITT Cannon, LLC

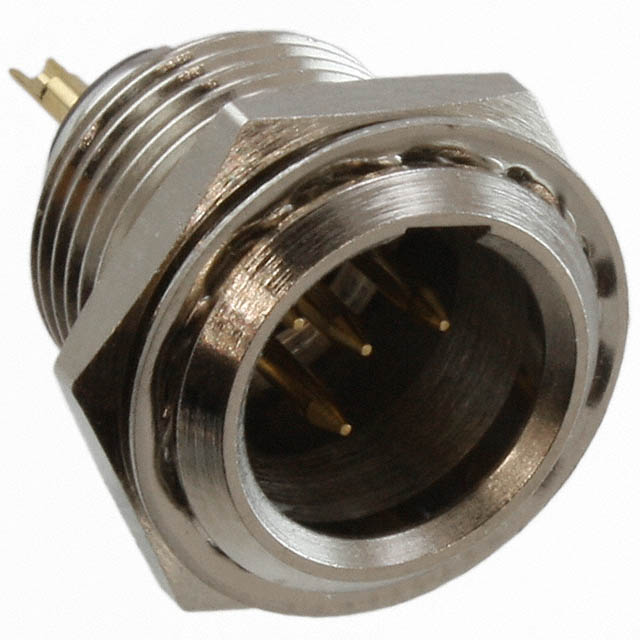

CONN RCPT MALE MINI XLR 4P SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M-XL-4-14

Active

ITT Cannon, LLC

CONN RCPT MALE MINI XLR 4P SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M-XL-4-14

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	3 A
Fastening Type	Latch Lock
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper
Shell Size - Insert	Mini XLR
Termination	Solder
Voltage Rating	125 VDC

M-XL Series

Part	Termination	Orientation	Voltage Rating	Primary Material	Mounting Feature	Color	Shell Finish	Contact Finish - Mating	Shell Size - Insert	Shell Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions	Fastening Type	Mounting Type	Features
ITT Cannon, LLC M-XL-6-14	Solder	Keyed	125 VDC	Metal	Bulkhead - Rear Side Nut	Silver	Nickel	Gold	Mini XLR	Copper	Male Pins Receptacle	-35 °C	85 °C	3 A	6	Latch Lock
ITT Cannon, LLC M-XL-4-11S	Solder	Keyed	125 VDC	Metal		Silver	Nickel	Gold	Mini XLR	Copper	Female Sockets Plug	-35 °C	85 °C	3 A	4	Latch Lock	Free Hanging (In-Line)	Strain Relief
ITT Cannon, LLC M-XL-6-31	Solder	Keyed	125 VDC	Metal	Flange	Silver	Nickel	Gold	Mini XLR	Copper	Receptacle Female Sockets	-35 °C	85 °C	3 A	6	Latch Lock
ITT Cannon, LLC M-XL-6-11S	Solder	Keyed	125 VDC	Metal		Silver	Nickel	Gold	Mini XLR	Copper	Female Sockets Plug	-35 °C	85 °C	3 A	6	Latch Lock	Free Hanging (In-Line)	Strain Relief
ITT Cannon, LLC M-XL-6-11M	Solder	Keyed	125 VDC	Metal		Silver	Nickel	Gold	Mini XLR	Copper	Female Sockets Plug	-35 °C	85 °C	3 A	6	Latch Lock	Free Hanging (In-Line)
ITT Cannon, LLC M-XL-5-11L	Solder	Keyed	125 VDC	Metal		Silver	Nickel	Gold	Mini XLR	Copper	Female Sockets Plug	-35 °C	85 °C	3 A		Latch Lock	Free Hanging (In-Line)
ITT Cannon, LLC M-XL-5-11M	Solder	Keyed	125 VDC	Metal		Silver	Nickel	Gold	Mini XLR	Copper	Female Sockets Plug	-35 °C	85 °C	3 A		Latch Lock	Free Hanging (In-Line)
ITT Cannon, LLC M-XL-3-14	Solder	Keyed	125 VDC	Metal	Bulkhead - Rear Side Nut	Silver	Nickel	Gold	Mini XLR	Copper	Male Pins Receptacle	-35 °C	85 °C	3 A		Latch Lock
ITT Cannon, LLC M-XL-3-11L	Solder	Keyed	125 VDC	Metal		Silver	Nickel	Gold	Mini XLR	Copper	Female Sockets Plug	-35 °C	85 °C	3 A		Latch Lock	Free Hanging (In-Line)
ITT Cannon, LLC M-XL-4-14	Solder	Keyed	125 VDC	Metal	Bulkhead - Rear Side Nut	Silver	Nickel	Gold	Mini XLR	Copper	Male Pins Receptacle	-35 °C	85 °C	3 A	4	Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.11
		10	$ 11.99
		25	$ 11.24
		50	$ 10.71
		100	$ 10.20
		250	$ 9.56
		500	$ 9.10

Description

General part information

M-XL Series

4 Position Circular Connector Receptacle, Male Pins Solder
