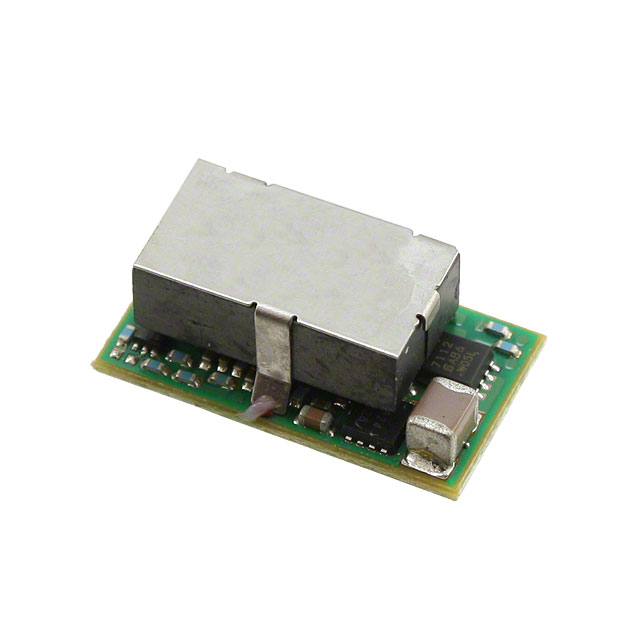

APTH012A0X43-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.6-3.63V 44W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APTH012A0X43-SRZ
ActiveOmniOn Power™
DC DC CONVERTER 0.6-3.63V 44W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APTH012A0X43-SRZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 12 A |
| Efficiency | 94.6 % |
| Features | Remote On/Off, UVLO, OCP, OTP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Power (Watts) | 44 W |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [y] | 0.45 in |
| Size / Dimension [y] | 11.4 mm |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.4 V |
| Voltage - Output 1 [Max] | 3.63 V |
| Voltage - Output 1 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 15.60 | |
| 250 | $ 15.60 | |||
| 750 | $ 16.05 | |||
| 750 | $ 16.05 | |||
Description
General part information
APTH012 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.63V 12A 2.4V - 5.5V Input
