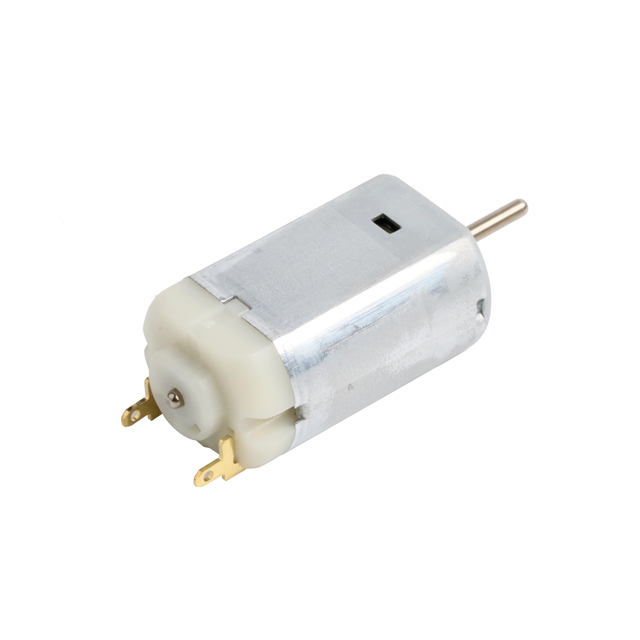

NF103G-301

Active

Johnson Motor

LOW VOLTAGE DC MOTORS

Search across all available documentation for this part.

Active

Johnson Motor

LOW VOLTAGE DC MOTORS

Technical Specifications

Parameters and characteristics for this part

Specification	NF103G-301

Diameter - Shaft [diameter]	2 mm
Diameter - Shaft [diameter]	0.079 in
Function	Standard
Motor Type	Brushed
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
RPM	582 RPM
Size / Dimension	Round
Size / Dimension [diameter]	20.32 mm
Size / Dimension [diameter]	0.8 in
Termination Style	Connector
Torque - Rated (oz-in / mNm)	0.48 oz-in
Torque - Rated (oz-in / mNm)	3.42 mNm
Type	DC Motor
Voltage - Rated	3.6 VDC

Part	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Type	Voltage - Rated	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Termination Style	RPM	Size / Dimension [diameter]	Size / Dimension	Size / Dimension [diameter]	Function	Motor Type	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]
Johnson Motor NF103G-301	0.48 oz-in	3.42 mNm	DC Motor	3.6 VDC	55 °C	-10 °C	Connector	582 RPM	20.32 mm	Round	0.8 in	Standard	Brushed	2 mm	0.079 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 582 RPM 3.6VDC
