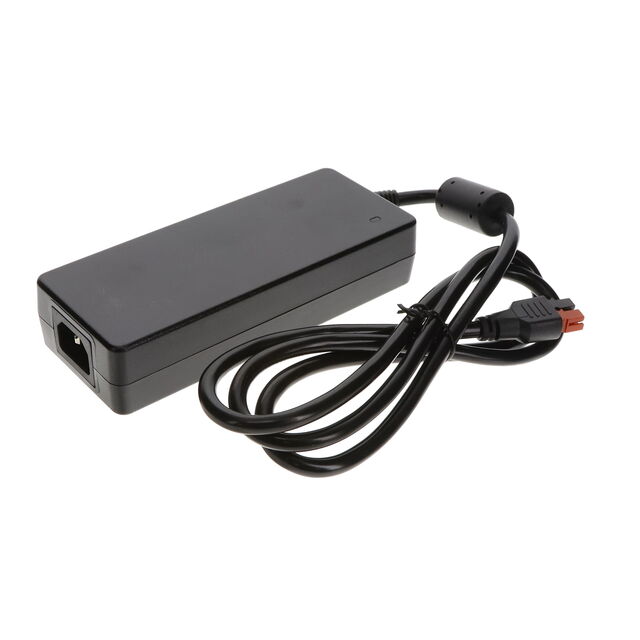

GC120A48-AD1
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 54.4V 2.21A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GC120A48-AD1
ActiveMEAN WELL USA Inc.
BATT CHARGER DESKTOP 54.4V 2.21A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GC120A48-AD1 |
|---|---|
| Approval Agency | PSE, UL, cULus, GS, CE, CB |
| Battery Cell Size | 48 V |
| Battery Chemistry | Lithium-Ion, Lead Acid |
| Charge Current - Max [Max] | 2.21 A |
| Features | LED Indicator |
| Mounting Type | Desktop |
| Number of Cells | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Max [Max] | 120.2 W |
| Size / Dimension [x] | 6.57 " |
| Size / Dimension [x] | 167 mm |
| Size / Dimension [y] | 67 mm |
| Size / Dimension [y] | 2.64 " |
| Size / Dimension [z] | 1.38 in |
| Size / Dimension [z] | 35 mm |
| Termination Style | Rectangular Connector |
| Type | Desktop |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Nominal | 54.4 V |
| Weight | 620 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 43.07 | |
| 5 | $ 41.02 | |||
| 10 | $ 40.17 | |||
| 25 | $ 39.07 | |||
Description
General part information
GC120A48 Series
Desktop Battery Charger 54.4V 2.21A 48V
