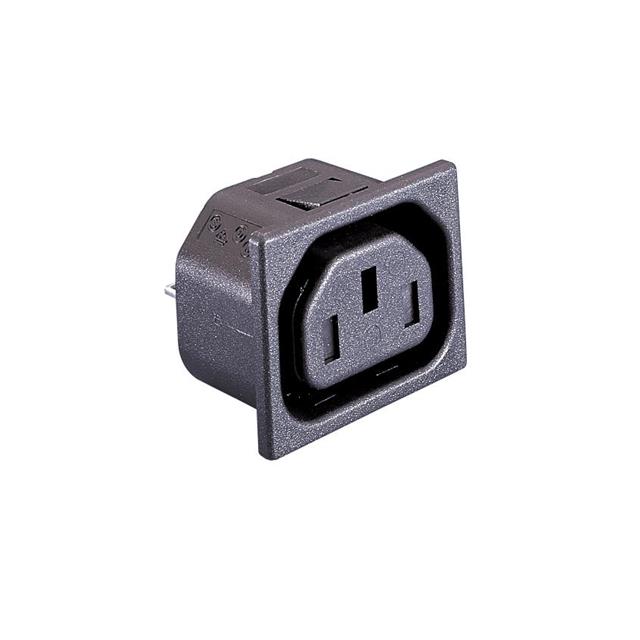

PX0783/15/63

Active

BULGIN LIMITED

PWR ENT RCPT IEC320-2-2F PNL QC

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT RCPT IEC320-2-2F PNL QC

Technical Specifications

Parameters and characteristics for this part

Specification	PX0783/15/63

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-2-2/F
Connector Type	Receptacle, Female Sockets
Current Rating - Appliance Inlet	10 A
Features	Shuttered
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	32.26 mm
Panel Cutout Dimensions [y]	24.77 mm
Panel Thickness [custom]	0.059 in
Panel Thickness [custom]	1.5 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - Appliance Inlet	Filter Type	Material Flammability Rating	Approval Agency	Panel Thickness [custom]	Panel Thickness [custom]	Connector Type	Mounting Type	Accomodates a Fuse	Current Rating - Appliance Inlet	Termination	Termination	Termination	Connector Style	Features
BULGIN LIMITED PX0783/15/63	24.77 mm	32.26 mm	250 VAC	Unfiltered - Commercial	UL94 V-0	CSA ENEC UL VDE	0.059 in	1.5 mm	Receptacle Female Sockets	Panel Mount Snap-In		10 A	0.25 in	6.3 mm	Quick Connect	IEC 320-2-2/F	Shuttered

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
