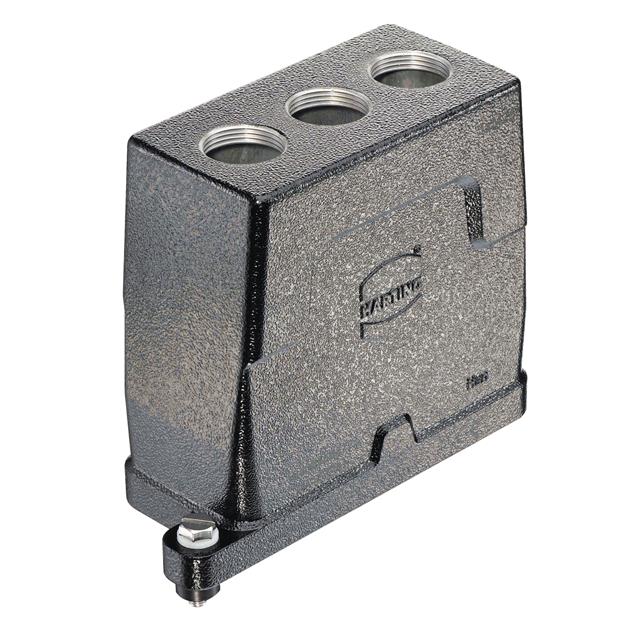

19400160477

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16HPR; FOR CABLE; HAN® HPR

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 16HPR; FOR CABLE; HAN® HPR

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Connector Type	Style	Lock Location	Housing Material	Size	Housing Color	Housing Finish	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Features
HARTING Technology Group 19400160411	4.35 "	165 mm	2.283 "	6.496 in	110.5 mm	58 mm	Hood	Top Entry	Screw Locks on Hood	Aluminum Die Cast	16 B	Black	Powder Coated	M25	125 °C	-40 °C
HARTING Technology Group 19400160912							Hood - 90°	Side Entry	Screw Locks on Hood	Aluminum Die Cast	16 B	Black	Powder Coated	M32	125 °C	-40 °C
HARTING Technology Group 19400160502	4.35 "	165 mm	2.283 "	6.496 in	110.5 mm	58 mm	Hood	Side Entry	Screw Locks on Hood	Aluminum Die Cast	16 B	Black	Powder Coated	M32	125 °C	-40 °C
HARTING Technology Group 19400160477							Hood	Top Entry	Screw Locks on Hood	Aluminum Die Cast	16 B	Black	Powder Coated	M25	125 °C	-40 °C	Corrosion Resistant
HARTING Technology Group 19400160569	4.724 "	165 mm	2.283 "	6.496 in	120 mm	58 mm	Hood	Side Entry	Screw Locks on Hood	Aluminum Die Cast	16 B	Black	Powder Coated	M50	125 °C	-40 °C	Corrosion Resistant
HARTING Technology Group 19400160513	4.35 "	165 mm	2.283 "	6.496 in	110.5 mm	58 mm	Hood	Side Entry	Screw Locks on Hood	Aluminum Die Cast	16 B	Black	Powder Coated		125 °C	-40 °C
HARTING Technology Group 19400160414	4.35 "	165 mm	2.283 "	6.496 in	110.5 mm	58 mm	Hood	Top Entry	Screw Locks on Hood	Aluminum Die Cast	16 B	Black	Powder Coated		125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M25 16B IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
