HJ1P050-PB1

Obsolete

JAE Electronics

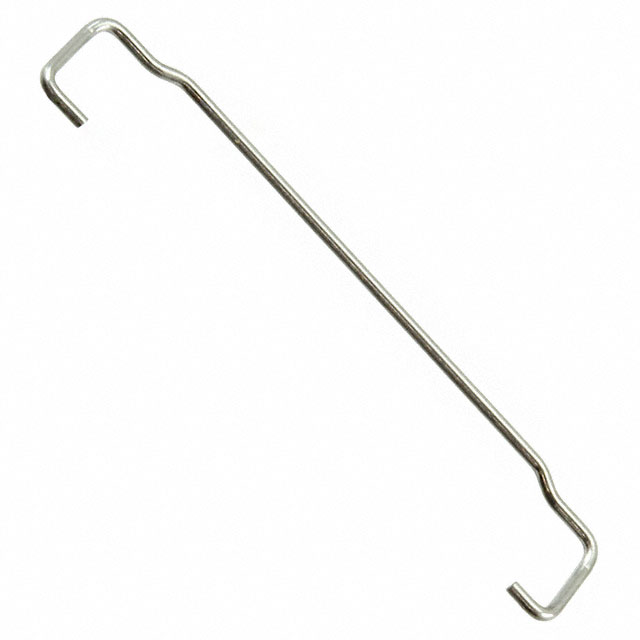

LCD EDP CONNECTOR PULL BAR

Search across all available documentation for this part.

Obsolete

JAE Electronics

LCD EDP CONNECTOR PULL BAR

Technical Specifications

Parameters and characteristics for this part

Specification	HJ1P050-PB1

Accessory Type	Pull Bar
For Use With/Related Products	HJ1 Series
Number of Positions	50

Part	Pitch [x]	Pitch [x]	Contact Type	Contact Finish	Mounting Type	Cable Termination	Connector Type	Number of Rows	Number of Positions	Wire Gauge [Max]	Wire Gauge [Min]	Wire Type	For Use With/Related Products	Accessory Type
JAE Electronics HJ1P050MA1R6000	0.016 in	0.4 mm	Center Strip Contact	Gold	Free Hanging (In-Line)	Solder	Plug	1	50	36 AWG 46 AWG	34 AWG 36 AWG	Discrete or Ribbon Cable
JAE Electronics HJ1P050-CSH1-10000									50				HJ1 Series	Cap (Cover) Shell
JAE Electronics HJ1P050-PB1									50				HJ1 Series	Pull Bar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Pull Bar For HJ1 Series
