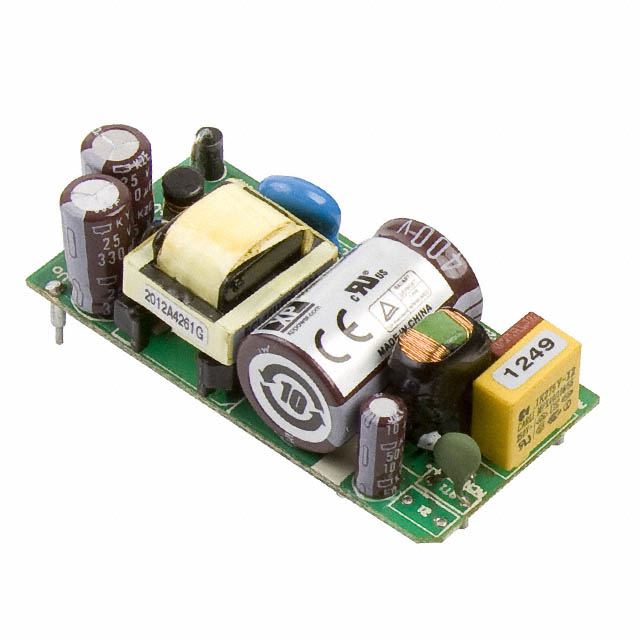

ECL15US15-P
ActiveXP POWER
AC/DC CONVERTER 15V 15W
Deep-Dive with AI
Search across all available documentation for this part.
ECL15US15-P
ActiveXP POWER
AC/DC CONVERTER 15V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ECL15US15-P |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CSA, UL, cUL, IEC, EN |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 80 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 62 mm |
| Size / Dimension [x] | 2.44 in |
| Size / Dimension [y] | 1.21 in |
| Size / Dimension [y] | 30.7 mm |
| Size / Dimension [z] | 0.96 " |
| Size / Dimension [z] | 24.4 mm |
| Standard Number | 62368-1 |
| Type | Open Frame |
| Voltage - Output 1 | 15 V |
| Weight | 34.93 g |
| Weight | 0.077 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 6 | $ 30.86 | |
Description
General part information
ECL15US15 Series
Open Frame AC DC Converters 1 Output 15V 1A 85 ~ 264 VAC Input
