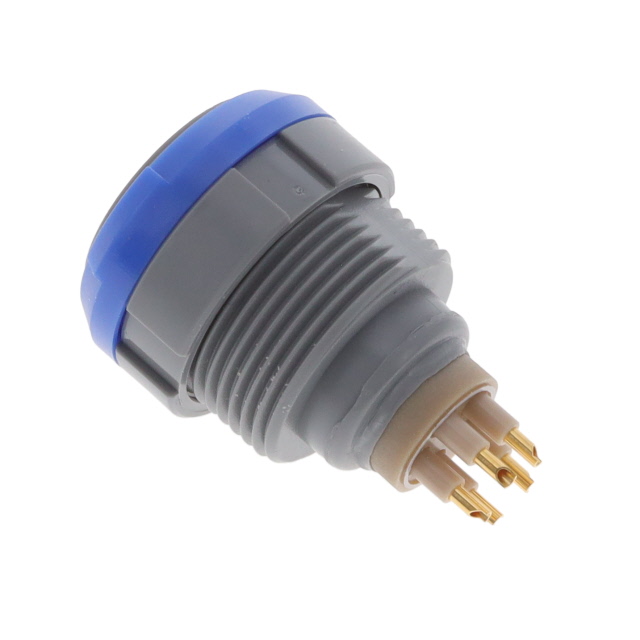

CKB.H05.GLLA

Active

LEMO

PANEL RECEPTACLE 5 POS

Search across all available documentation for this part.

Active

LEMO

PANEL RECEPTACLE 5 POS

Technical Specifications

Parameters and characteristics for this part

Specification	CKB.H05.GLLA

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	8 A
Fastening Type	Detent Lock, Push-Pull
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	B
Shell Material	Polysulfone (PSU)
Shell Size - Insert	H-5
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Ingress Protection	Color	Current Rating (Amps)	Shell Size - Insert	Voltage Rating	Connector Type	Orientation	Fastening Type	Mounting Feature	Material Flammability Rating	Applications	Shell Material	Shielding	Contact Finish - Mating
LEMO CKB.H05.GLLA	150 °C	-50 °C	Polyetheretherketone (PEEK)	IP50	Gray	8 A	H-5	250 VDC	Receptacle Female Sockets	B	Detent Lock Push-Pull	Bulkhead - Rear Side Nut	UL94 V-0	Automotive Industrial Medical Testing Equipment & Measurement	Polysulfone (PSU)	Unshielded	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical documentation and resources
