5501-12-1

Active

Coto Technology

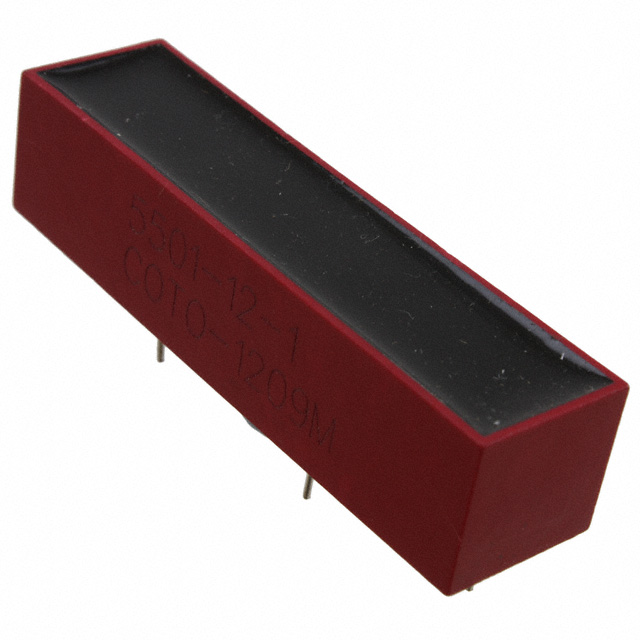

REED RELAY, SPST-NO, 12 VDC, 5500 SERIES, THROUGH HOLE, 175 OHM, 3 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

5501-12-1

Active

Coto Technology

REED RELAY, SPST-NO, 12 VDC, 5500 SERIES, THROUGH HOLE, 175 OHM, 3 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5501-12-1

Coil Current	68.6 mA
Coil Resistance	175 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	3 A
Features	EMI Shielded
Mounting Type	Through Hole
Must Operate Voltage	9 VDC
Must Release Voltage	1 VDC
Operate Time	3 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Release Time	3 ms
Switching Voltage [Max]	7500 VAC, 7500 VDC
Termination Style	PC Pin

5501 Series

Part	Operate Time	Termination Style	Coil Voltage	Coil Type	Coil Resistance	Contact Form	Contact Rating (Current)	Mounting Type	Must Operate Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Switching Voltage [Max]	Release Time	Coil Current	Features
Coto Technology 5501-05-1	3 ms	PC Pin	5 VDC	Non Latching	40 Ohms	SPST-NO (1 Form A)	3 A	Through Hole	3.75 VDC	85 °C	-20 C	0.5 VDC	7500 VAC 7500 VDC	3 ms	125 mA	EMI Shielded
Coto Technology 5501-12-1	3 ms	PC Pin	12 VDC	Non Latching	175 Ohms	SPST-NO (1 Form A)	3 A	Through Hole	9 VDC	85 °C	-20 C	1 VDC	7500 VAC 7500 VDC	3 ms	68.6 mA	EMI Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.16
		21	$ 50.36
		42	$ 44.76
		84	$ 41.97
		231	$ 39.17
Newark	Each	1	$ 52.67
		5	$ 51.74
		10	$ 50.81
		25	$ 49.90
		50	$ 44.36
		100	$ 41.58

Description

General part information

5501 Series

The 5501-12-1 is a high-voltage Reed Relay with 1-form-A contact. This 5500-series relay has hermetically sealed tungsten contacts for long life. High dielectric strength of 10000V isolation across contacts.
