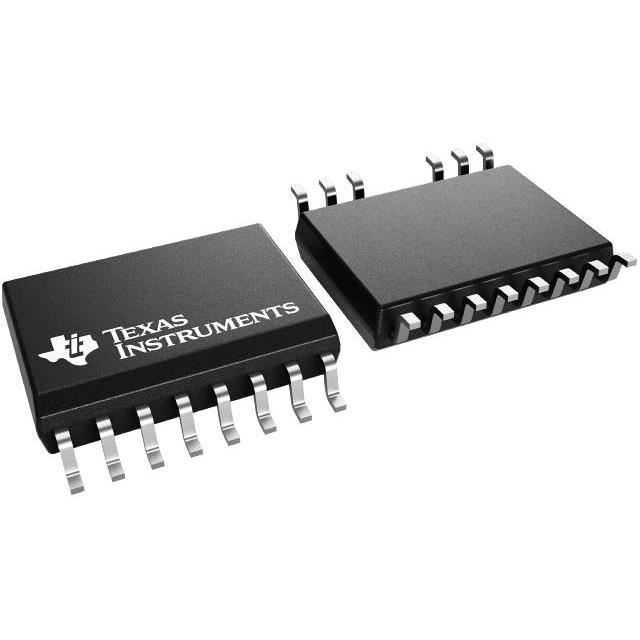

UCC21551DQDWKRQ1
ActiveAUTOMOTIVE, 4A/6A 5KVRMS DUAL-CHANNEL ISOLATED GATE DRIVER WITH EN AND DT PINS FOR IGBT AND SIC
Deep-Dive with AI
Search across all available documentation for this part.
UCC21551DQDWKRQ1
ActiveAUTOMOTIVE, 4A/6A 5KVRMS DUAL-CHANNEL ISOLATED GATE DRIVER WITH EN AND DT PINS FOR IGBT AND SIC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UCC21551DQDWKRQ1 |
|---|---|
| Approval Agency | UL, CSA, VDE, CQC |
| Common Mode Transient Immunity (Min) [Min] | 125 V/ns |
| Current - Output High, Low | 4 A, 6 A |
| Current - Peak Output | 6 A, 4 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Package / Case | 0.295 in |
| Package / Case | 14-SOIC |
| Package / Case | 7.5 mm |
| Propagation Delay tpLH / tpHL (Max) [Max] [custom] | 45 ns |
| Propagation Delay tpLH / tpHL (Max) [Max] [custom] | 45 ns |
| Pulse Width Distortion (Max) | 5 ns |
| Qualification | AEC-Q100 |
| Rise / Fall Time (Typ) [custom] | 8 ns |
| Rise / Fall Time (Typ) [custom] | 8 ns |
| Technology | Capacitive Coupling |
| Voltage - Output Supply [Max] | 25 V |
| Voltage - Output Supply [Min] | 19 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.28 | |
| 10 | $ 2.94 | |||
| 25 | $ 2.78 | |||
| 100 | $ 2.41 | |||
| 250 | $ 2.29 | |||
| 500 | $ 2.05 | |||
| 1000 | $ 1.73 | |||
| Digi-Reel® | 1 | $ 3.28 | ||
| 10 | $ 2.94 | |||
| 25 | $ 2.78 | |||
| 100 | $ 2.41 | |||
| 250 | $ 2.29 | |||
| 500 | $ 2.05 | |||
| 1000 | $ 1.73 | |||
| Tape & Reel (TR) | 2000 | $ 1.65 | ||
| 6000 | $ 1.58 | |||
| Texas Instruments | LARGE T&R | 1 | $ 3.03 | |
| 100 | $ 2.33 | |||
| 250 | $ 1.71 | |||
| 1000 | $ 1.23 | |||
Description
General part information
UCC21551-Q1 Series
The UCC21551x-Q1 is an isolated dual channel gate driver family with programmable dead time and wide temperature range. It is designed with 4A peak-source and 6A peak-sink current to drive power MOSFET, SiC, and IGBT transistors.
The UCC21551x-Q1 can be configured as two low-side drivers, two high-side drivers, or a half-bridge driver. The input side is isolated from the two output drivers by a 5kVRMS isolation barrier, with a minimum of 125V/ns common-mode transient immunity (CMTI). DFJ28 package offers >5.3mm CH-to-CH creepage to support high voltage systems.
Protection features include: resistor programmable dead time, disable feature to shut down both outputs simultaneously, and integrated de-glitch filter that rejects input transients shorter than 5ns. All supplies have UVLO protection.
