0395166011

Active

Molex

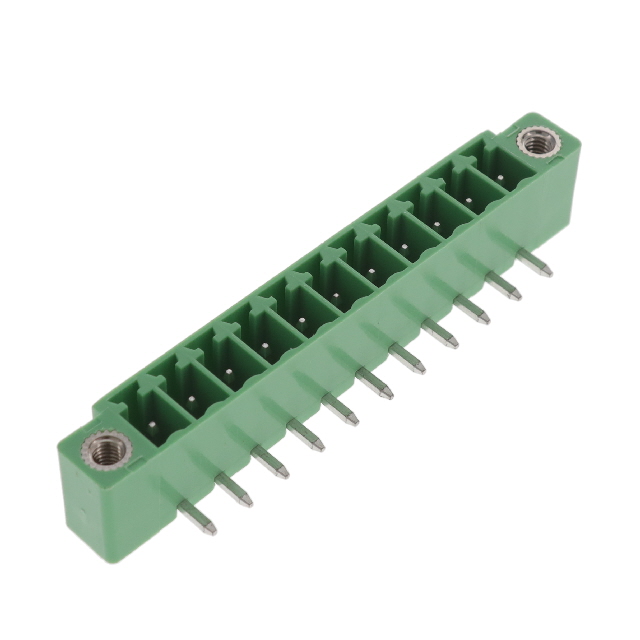

PLUGGABLE TERMINAL BLOCKS 3.81MM EURO HEADER RA ME GRN 11CKT

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec

0395166011

Active

Molex

PLUGGABLE TERMINAL BLOCKS 3.81MM EURO HEADER RA ME GRN 11CKT

Deep-Dive with AI

Documents39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395166011

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	8 A
Features	Mating Flange
Header Orientation	90°, Right Angle
Insulation Height	0.27 "
Insulation Height	6.86 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	11
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	11
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039516 Series

Part	Features	Pitch [x]	Pitch [x]	Color	Insulation Height	Insulation Height	Number of Levels	Positions Per Level	Material Flammability Rating	Header Orientation	Number of Positions	Voltage - UL	Mounting Type	Type	Contact Tail Length	Contact Tail Length	Termination Style	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL
Molex 0395166504	Mating Flange	0.15 in	3.81 mm	Green	0.27 "	6.86 mm	1	4	UL94 V-0	90° Right Angle	4	300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Gold	-40 °C	105 ░C	8 A
Molex 0395161018	Mating Flange	0.15 in	3.81 mm	Black	0.27 "	6.86 mm	1	18	UL94 V-0	90° Right Angle	18	300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Tin	-40 °C	105 ░C	8 A
Molex 0395161007	Mating Flange	0.15 in	3.81 mm	Black	0.27 "	6.86 mm	1	7	UL94 V-0	90° Right Angle	7	300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Tin	-40 °C	105 ░C	8 A
Molex 0395166017	Mating Flange	0.15 in	3.81 mm	Green	0.27 "	6.86 mm	1	17	UL94 V-0	90° Right Angle		300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Tin	-40 °C	105 ░C	8 A
Molex 0395161017	Mating Flange	0.15 in	3.81 mm	Black	0.27 "	6.86 mm	1	17	UL94 V-0	90° Right Angle		300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Tin	-40 °C	105 ░C	8 A
Molex 0395166518	Mating Flange	0.15 in	3.81 mm	Green	0.27 "	6.86 mm	1	18	UL94 V-0	90° Right Angle	18	300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Gold	-40 °C	105 ░C	8 A
Molex 0395161014	Mating Flange	0.15 in	3.81 mm	Black	0.27 "	6.86 mm	1	14	UL94 V-0	90° Right Angle	14	300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Tin	-40 °C	105 ░C	8 A
Molex 0395166505	Mating Flange	0.15 in	3.81 mm	Green	0.27 "	6.86 mm	1	5	UL94 V-0	90° Right Angle		300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Gold	-40 °C	105 ░C	8 A
Molex 0395166006	Mating Flange	0.15 in	3.81 mm	Green	0.27 "	6.86 mm	1	6	UL94 V-0	90° Right Angle	6	300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Tin	-40 °C	105 ░C	8 A
Molex 0395166011	Mating Flange	0.15 in	3.81 mm	Green	0.27 "	6.86 mm	1	11	UL94 V-0	90° Right Angle	11	300 V	Through Hole	Header Male Pins Shrouded (4 Side)	3.5 mm	0.138 in	Solder	Tin	-40 °C	105 ░C	8 A
