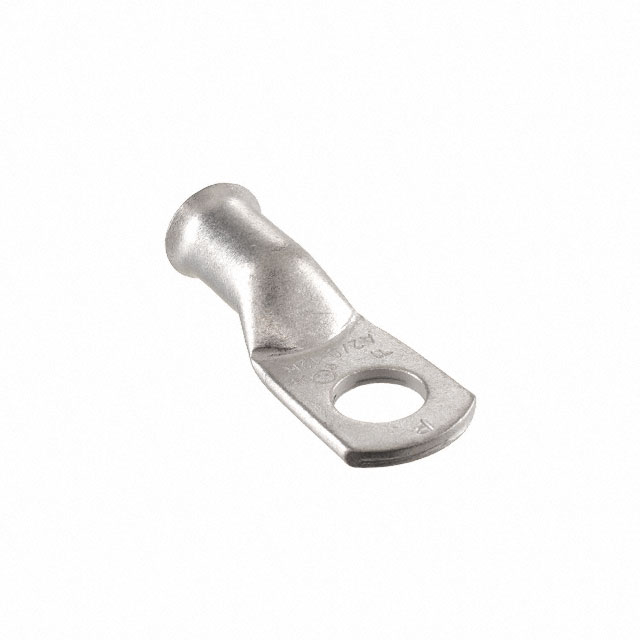

A2/0-12R-C

Active

Panduit Corp

TERMINALS BATTERY CABLE LUG, 2 AWG, 1/2" STUD

Search across all available documentation for this part.

Active

Panduit Corp

TERMINALS BATTERY CABLE LUG, 2 AWG, 1/2" STUD

Technical Specifications

Parameters and characteristics for this part

Specification	A2/0-12R-C

Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Non-Insulated
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	1/2 Stud
Terminal Type	Circular Tubular (Battery Lugs)
Termination	Crimp
Thickness	0.13 in
Thickness	3.3 mm
Width - Outer Edges [y]	0.85 in
Width - Outer Edges [y]	21.59 mm

Terminals Battery Cable Lug, 2 AWG, 1/4" Stud

Part	Insulation	Mounting Type	Terminal Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Thickness	Thickness	Contact Material	Stud/Tab Size	Contact Finish	Termination
Panduit Corp A2/0-12R-C	Non-Insulated	Free Hanging (In-Line)	Circular Tubular (Battery Lugs)	0.85 in	21.59 mm	0.13 in	3.3 mm	Copper	1/2 Stud	Electro-Tin	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminals Battery Cable Lug, 2 AWG, 1/4" Stud
