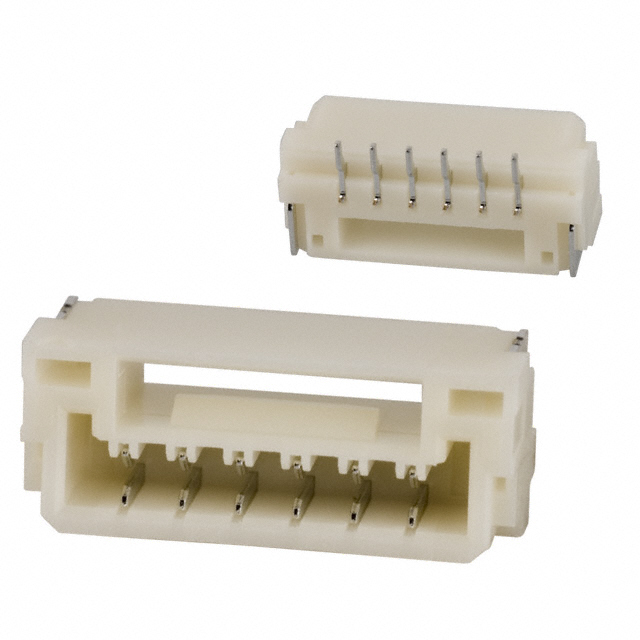

BM06B-GHS-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 6POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
BM06B-GHS-TBT
ActiveJST Sales America Inc.
CONN HEADER SMD 6POS 1.25MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM06B-GHS-TBT |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Phosphor Bronze |
| Contact Shape | Rectangular |
| Contact Type | Outer Shroud Contact |
| Fastening Type | Locking Ramp |
| Features | Pick and Place, Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 4.05 mm |
| Insulation Height | 0.159 in |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Mated Stacking Heights | 7.3 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
BM06B-GH Series
| Part | Contact Material | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Shape | Fastening Type | Features | Termination | Insulation Height | Insulation Height | Style | Contact Type | Mounting Type | Material Flammability Rating | Mated Stacking Heights | Voltage Rating | Number of Rows | Contact Finish - Post | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Connector Type | Number of Positions Loaded | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | Phosphor Bronze | 1.25 mm | 0.049 in | Natural | Rectangular | Locking Ramp | Pick and Place Solder Retention | Solder | 4.05 mm | 0.159 in | Board to Cable/Wire | Outer Shroud Contact | Surface Mount | UL94 V-0 | 7.3 mm | 50 V | 1 | Tin | Shrouded - 4 Wall | -25 °C | 85 °C | 6 | Header | All | Nylon 9T Polyamide (PA9T) |
JST Sales America Inc. | Phosphor Bronze | 1.25 mm | 0.049 in | Natural | Rectangular | Locking Ramp | Pick and Place Solder Retention | Solder | 4.05 mm | 0.159 in | Board to Cable/Wire | Outer Shroud Contact | Surface Mount | UL94 V-0 | 7.3 mm | 50 VAC | 1 | Shrouded - 4 Wall | -25 °C | 85 °C | 6 | Header | All | Nylon 9T Polyamide (PA9T) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.51 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.30 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.51 | |||
| 100 | $ 0.39 | |||
| 500 | $ 0.32 | |||
| 1000 | $ 0.30 | |||
| Tape & Reel (TR) | 2500 | $ 0.27 | ||
| 5000 | $ 0.25 | |||
| 7500 | $ 0.24 | |||
| 12500 | $ 0.23 | |||
| 17500 | $ 0.22 | |||
| 25000 | $ 0.22 | |||
Description
General part information
BM06B-GH Series
Connector Header Surface Mount 6 position 0.049" (1.25mm)
