7015-1001

Active

Amphenol SV Microwave

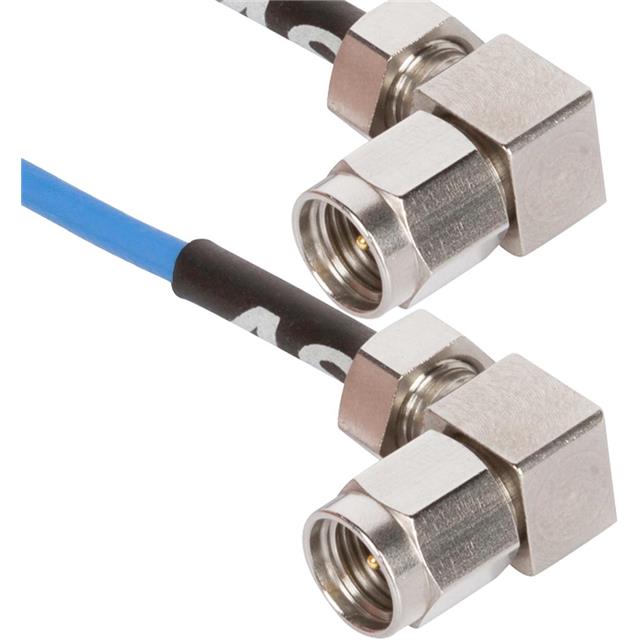

CBL ASSY 2.92MM PLUG TO PLUG 12"

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CBL ASSY 2.92MM PLUG TO PLUG 12"

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Style [Min]	Style [Max]	Features	1st Connector	1st Connector	2nd Contact Gender	Overall Impedance	Length	Length	Color	1st Contact Gender	Cable Type	Frequency - Max [Max]	1st Connector Mounting Type	2nd Connector Mounting Type	2nd Connector	2nd Connector	Style	Cable Type	1st Connector Mounting Feature
Amphenol SV Microwave 7015-1001	-65 ░C	165 °C	2.92 mm	2.92 mm	Shielded	Right Angle	2.92 mm	Male	50 Ohms	12 "	304.8 mm	Blue	Male	TFlex-405	40 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	2.92 mm
Amphenol SV Microwave 7015-1065	-65 ░C	165 °C			Shielded	SMA Jack		Male	50 Ohms	6 in	152.4 mm	Blue	Female	Semi-Rigid Cable	40 GHz	Panel Mount	Free Hanging (In-Line)		SMA Plug	SMA to SMA	0.086 "	Bulkhead - Front Side Nut
Amphenol SV Microwave 7015-1077	-65 ░C	165 °C	2.92 mm	2.92 mm		Jack	2.92 mm	Male	50 Ohms	6 in	152.4 mm	Silver	Female	0.047" Flexible Cable	40 GHz	Panel Mount	Free Hanging (In-Line)	2.92 mm				Bulkhead - Front Side Nut
Amphenol SV Microwave 7015-1000	-65 ░C	165 °C	2.92 mm	2.92 mm	Shielded	Right Angle	2.92 mm	Male	50 Ohms	6 in	152.4 mm	Blue	Male	TFlex-405	40 GHz	Free Hanging (In-Line)	Free Hanging (In-Line)	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial 2.92mm to 2.92mm TFlex-405 12.00" (304.80mm)
