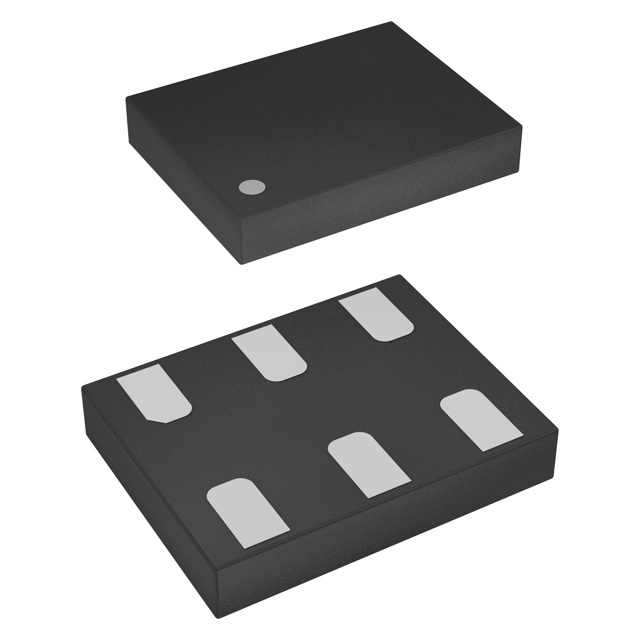

SIT3921AI-2BF-33NZ148.500000T

Active

SiTime

MEMS OSC DCXO 148.5000MHZ LVDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturing Notes for SiTime Products

SIT3921AI-2BF-33NZ148.500000T

Active

SiTime

MEMS OSC DCXO 148.5000MHZ LVDS

Deep-Dive with AI

DocumentsDatasheet Manufacturing Notes for SiTime Products

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SIT3921AI-2BF-33NZ148.500000T

Base Resonator	MEMS
Current - Supply (Max) [Max]	55 mA
Frequency	148.5 MHz
Frequency Stability	10 ppm
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	LVDS
Package / Case	6-SMD, No Lead
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Type	DCXO
Voltage - Supply	3.3 V

SIT3921 Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Type	Mounting Type	Output	Base Resonator	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply	Frequency Stability	Package / Case	Frequency	Current - Supply (Max) [Max]	Absolute Pull Range (APR)	Supplier Device Package
SiTime SIT3921AC-2CF-33NZ125.000000X	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-20 C	70 °C	3.3 V	10 ppm	6-SMD No Lead	125 MHz	55 mA
SiTime SIT3921AI-2CF-33NZ125.000000X	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-40 °C	85 °C	3.3 V	10 ppm	6-SMD No Lead	125 MHz	55 mA	1600 ppm	6-SMD (5x3.2)
SiTime SIT3921AI-2C2-25NZ125.000000T	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-40 °C	85 °C	2.5 V	25 ppm	6-SMD No Lead	125 MHz	55 mA
SiTime SIT3921AI-2CF-33NZ148.425824Y	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-40 °C	85 °C	3.3 V	10 ppm	6-SMD No Lead	148.425824 MHz	55 mA
SiTime SIT3921AC-2CF-33NZ125.000000Y	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-20 C	70 °C	3.3 V	10 ppm	6-SMD No Lead	125 MHz	55 mA
SiTime SIT3921AI-2C2-25NY74.250000T	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-40 °C	85 °C	2.5 V	25 ppm	6-SMD No Lead	74.25 MHz	55 mA
SiTime SIT3921AC-2C3-33NZ27.000000T	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-20 C	70 °C	3.3 V	50 ppm	6-SMD No Lead	27 MHz	55 mA
SiTime SIT3921AI-2BF-33NZ148.500000T	0.8 mm	0.031 "	0.126 in	0.098 in	2.5 mm	3.2 mm	DCXO	Surface Mount	LVDS	MEMS	-40 °C	85 °C	3.3 V	10 ppm	6-SMD No Lead	148.5 MHz	55 mA
SiTime SIT3921AI-2C3-33NZ25.000000T	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-40 °C	85 °C	3.3 V	50 ppm	6-SMD No Lead	25 MHz	55 mA
SiTime SIT3921AC-2C3-25NZ148.425000X	0.8 mm	0.031 "	0.197 in	0.126 "	3.2 mm	5 mm	DCXO	Surface Mount	LVDS	MEMS	-20 C	70 °C	2.5 V	50 ppm	6-SMD No Lead	148.425 MHz	55 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 37.85
