B08P-HL-A

Active

JST Sales America Inc.

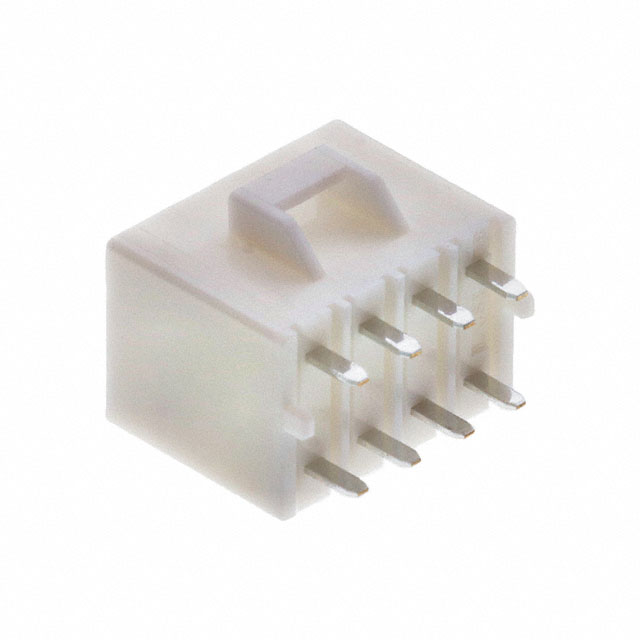

CONN HEADER VERT 8POS 3.96MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER VERT 8POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	B08P-HL-A

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VDC

Part	Insulation Color	Contact Shape	Termination	Material Flammability Rating	Connector Type	Current Rating (Amps)	Style	Fastening Type	Contact Type	Number of Positions Loaded	Contact Material	Number of Rows	Voltage Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Shrouding	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Number of Positions	Features	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Mated Stacking Heights	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating
JST Sales America Inc. B08P-HL-A	Natural	Rectangular	Solder	UL94 V-0	Header	7 A	Board to Cable/Wire	Latch Holder	Male Pin	All	Brass	2	300 VDC	Through Hole	0.156 in	3.96 mm	Shrouded - 4 Wall	Tin	90 °C	-25 °C	Polyamide (PA66) Nylon 6/6	8	Board Guide
JST Sales America Inc. B08P-VL	Natural	Square	Solder	UL94 V-0	Header	20 A	Board to Cable/Wire	Latch Holder	Male Pin	All	Copper Alloy	2	600 V	Through Hole			Shrouded - 4 Wall	Tin	90 °C	-25 °C	Polyamide (PA66) Nylon 6/6	8		6.2 mm	0.244 in	16.4 mm	0.646 in	29.2 mm	3.6 mm	0.142 in	8.28 mm	0.326 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 8 position 0.156" (3.96mm)
