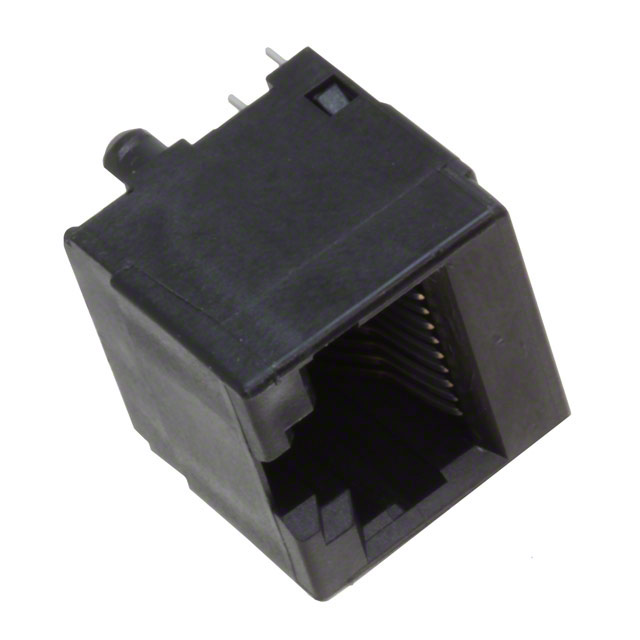

SS-651010-A-NF-K2

Active

BEL MAGNETIC SOLUTIONS

SS-651010-A-NF-K2

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

SS-651010-A-NF-K2

Technical Specifications

Parameters and characteristics for this part

Specification	SS-651010-A-NF-K2

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Lock, Keyed
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts [custom]	10
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

Part	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Shielding	Features	Orientation	LED Color	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Contact Material	Tab Direction	Connector Type	Number of Ports	Mounting Type	Contact Finish
BEL MAGNETIC SOLUTIONS SS-651010-A-NF-K2	Thermoplastic	0.76 Ám	30 Áin	Unshielded	Board Lock Keyed	Vertical	Does Not Contain LED	Solder	85 °C	-40 °C	1	10	10	Copper Alloy	User Selectable	Jack	1	Through Hole	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SS-651010-A-NF-K2

Technical documentation and resources

No documents available
