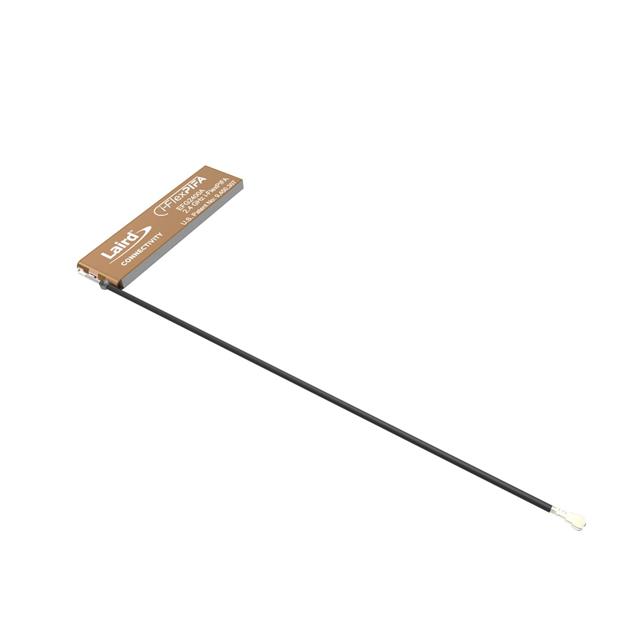

EFG2400A3S-10MH4L
ActiveEzurio LLC
ANT, I-FLEXPIFA, 2.4GHZ, 100MM CABLE ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
EFG2400A3S-10MH4L
ActiveEzurio LLC
ANT, I-FLEXPIFA, 2.4GHZ, 100MM CABLE ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | EFG2400A3S-10MH4L |
|---|---|
| Antenna Type | Flat Bar |
| Applications | Bluetooth, Wi-Fi |
| Features | Cable |
| Features | 100 mm |
| Frequency (Center/Band) | 2.442 GHz |
| Frequency Range [Max] | 2.485 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 3.4 dBi |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth |
| Termination | MHF4L |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EFG2400 Series
RF ANTENNA Bluetooth, Wi-Fi Flat Bar MHF4L Surface Mount
