C1166.41.01
ActivePrysmian Group

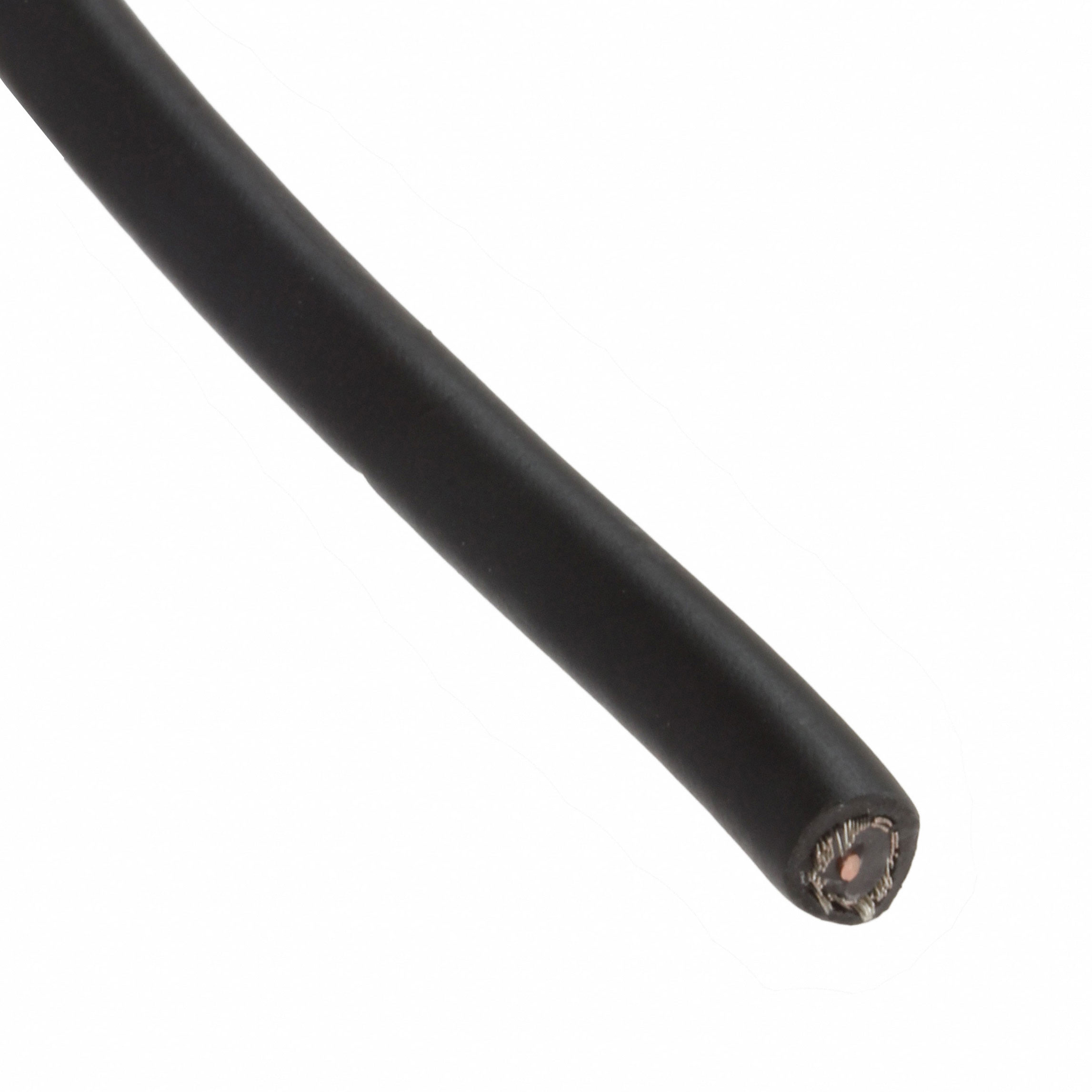

CABLE COAXIAL RG58 20AWG
Deep-Dive with AI
Search across all available documentation for this part.
C1166.41.01
ActivePrysmian Group
CABLE COAXIAL RG58 20AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1166.41.01 |
|---|---|
| Cable Group | RG-58 |
| Cable Type | Coaxial |
| Conductor Material | Copper, Bare |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 2.95 mm |
| Dielectric Diameter [diameter] | 0.116 in |
| Dielectric Material | Solid Polyethylene (PE) |
| Impedance | 50 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.195 in |
| Jacket (Insulation) Diameter [diameter] | 4.95 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | 304.8 m |
| Length | 1000 ft |
| Shield Coverage | 95 % |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Usage | Network, RF Signal |
| Wire Gauge | 20 AWG |
| Wire Gauge | 0.52 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 347.36 | |
| 2 | $ 330.35 | |||
| 3 | $ 320.73 | |||
| 5 | $ 308.94 | |||
| 7 | $ 301.37 | |||
| 10 | $ 293.51 | |||
| 25 | $ 274.08 | |||
Description
General part information
C1166 Series
Coaxial Cable 20 AWG (0.52mm²) RG-58 1000.0' (304.80m) 50 Ohms
