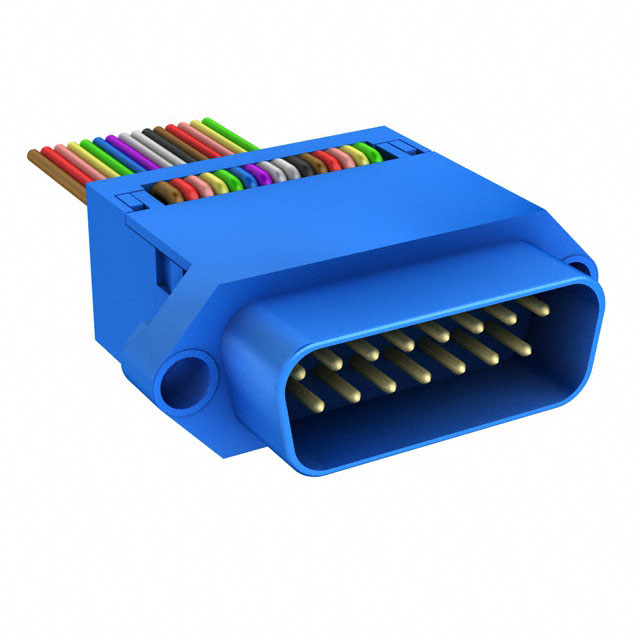

C7MXG-1506M
ActiveCW Industries
DSUB CABLE - CMP15G/AE15M/X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsRibbon Cable Assembly Length Guide
C7MXG-1506M
ActiveCW Industries
DSUB CABLE - CMP15G/AE15M/X
Deep-Dive with AI
DocumentsRibbon Cable Assembly Length Guide
Technical Specifications
Parameters and characteristics for this part
| Specification | C7MXG-1506M |
|---|---|
| 1st Connector | Plug, Male Pins |
| 2nd Connector | Individual Wire Leads |
| Color | Ribbon, Multiple |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Length | 6 ft |
| Length | 1.83 m |
| Number of Positions | 15 |
| Shielding | Unshielded |
| Type | DB15 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.19 | |
| 10 | $ 8.59 | |||
| 25 | $ 7.76 | |||
| 50 | $ 7.20 | |||
| 100 | $ 6.69 | |||
| 250 | $ 6.09 | |||
| 500 | $ 5.68 | |||
| 1000 | $ 5.32 | |||
Description
General part information
C7MXG-1 Series
D-Sub Cable Assembly DB15 Multiple, Ribbon 6.00' (1.83m) Plug, Male Pins to Individual Wire Leads Unshielded
