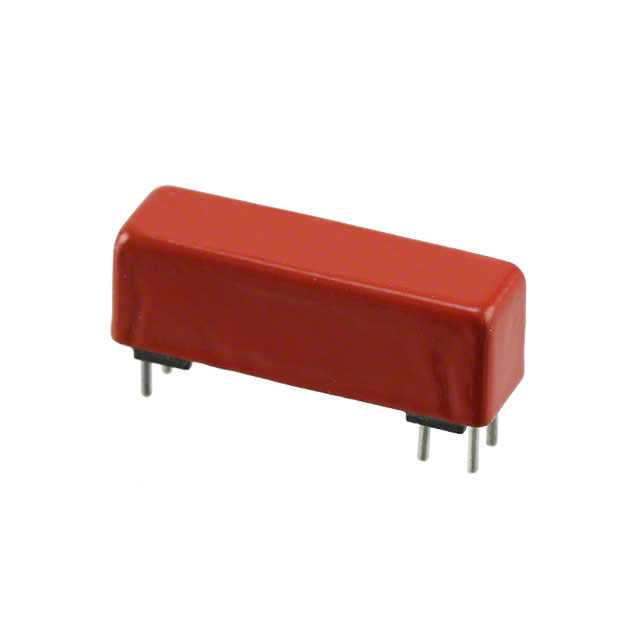

2911-12-301

Active

Coto Technology

RELAY REED SPDT 250MA 12V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED SPDT 250MA 12V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operate Time	Coil Resistance	Must Release Voltage	Coil Voltage	Release Time	Must Operate Voltage	Switching Voltage	Contact Form	Contact Rating (Current)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Coil Type	Coil Current
Coto Technology 2911-12-311	Through Hole	1 ms	1.5 kOhms	1 VDC	12 VDC	2 ms	9 VDC	150 VDC 150 VAC	SPDT (1 Form C)	250 mA	PC Pin	85 °C	-20 C	Non Latching
Coto Technology 2911-12-321	Through Hole	1 ms	1.5 kOhms	1 VDC	12 VDC	2 ms	9 VDC	150 VDC 150 VAC	SPDT (1 Form C)	250 mA	PC Pin	85 °C	-20 C	Non Latching
Coto Technology 2911-05-321	Through Hole	1 ms	230 Ohms	0.4 VDC	5 VDC	2 ms	3.8 VDC	150 VDC 150 VAC	SPDT (1 Form C)	250 mA	PC Pin	85 °C	-20 C	Non Latching	21.7 mA
Coto Technology 2911-12-301	Through Hole	1 ms	1.5 kOhms	1 VDC	12 VDC	2 ms	9 VDC	150 VDC 150 VAC	SPDT (1 Form C)	250 mA	PC Pin	85 °C	-20 C	Non Latching
Coto Technology 2911-05-301	Through Hole	1 ms	230 Ohms	0.4 VDC	5 VDC	2 ms	3.8 VDC	150 VDC 150 VAC	SPDT (1 Form C)	250 mA	PC Pin	85 °C	-20 C	Non Latching	21.7 mA
Coto Technology 2911-05-311	Through Hole	1 ms	230 Ohms	0.4 VDC	5 VDC	2 ms	3.8 VDC	150 VDC 150 VAC	SPDT (1 Form C)	250 mA	PC Pin	85 °C	-20 C	Non Latching	21.7 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED SPDT 250MA 12V
