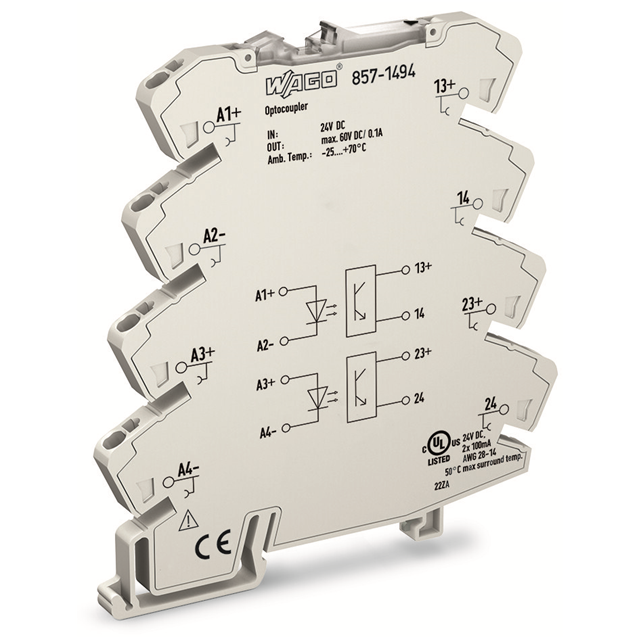

857-1494
ActiveWAGO Corporation
SSR RELAY SPST-NO 100MA 9-60V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
857-1494
ActiveWAGO Corporation
SSR RELAY SPST-NO 100MA 9-60V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 857-1494 |
|---|---|
| Approval Agency | EAC, UL |
| Load Current | 100 mA |
| Mounting Type | DIN Rail |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | DC |
| Package / Case | Module |
| Termination Style | Spring Terminal |
| Voltage - Input | 24 V |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
857-149 Series
Solid State SPST-NO (1 Form A) Module
