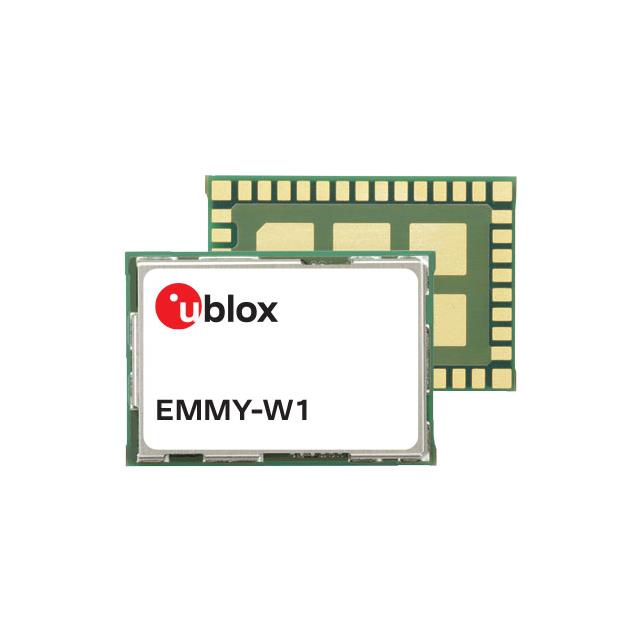

EMMY-W165-00B
Activeu-blox
RF TXRX MOD BLUETOOTH WIFISMD
Deep-Dive with AI
Search across all available documentation for this part.
EMMY-W165-00B
Activeu-blox
RF TXRX MOD BLUETOOTH WIFISMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EMMY-W165-00B |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving [Max] | 148 mA |
| Current - Receiving [Min] | 86 mA |
| Current - Transmitting [Max] | 372 mA |
| Current - Transmitting [Min] | 229 mA |
| Data Rate | 433 Mbps |
| Frequency [Max] | 2.5 GHz, 5.85 GHz |
| Frequency [Min] | 2.4 GHz, 5.15 GHz |
| Modulation | DSSS, OFDM, CCK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 46-SMD Module |
| Power - Output | 18 dBm |
| Protocol | Bluetooth v5.2 + EDR, 802.11a/b/g/-c |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -98 dBm |
| Serial Interfaces | UART, SDIO, PCM, GPIO |
| Utilized IC / Part | EMMY-W165 |
| Voltage - Supply [Max] | 1.98 V, 3.63 V |
| Voltage - Supply [Min] | 2.97 V, 1.62 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 500 | $ 18.68 | |
Description
General part information
EMMY-W165 Series
Bluetooth, WiFi 802.11a/b/g/-c, Bluetooth v5.2 + EDR Transceiver Module 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz Antenna Not Included Surface Mount
