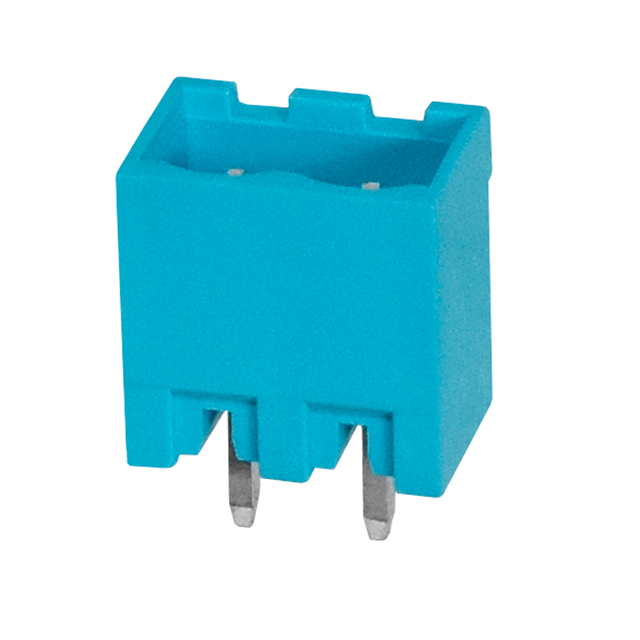

TBP01R2-508-02BE

Active

CUI Devices

CONN SHROUDED HEADER HDR 2 POS 5.08MM SOLDER ST TOP ENTRY THRU-HOLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TBP01R2-508-02BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Contact Tail Length	4 mm
Current - IEC	20 A
Current - UL	16 A
Header Orientation	Vertical
Insulation Height	0.472 in
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	2
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V
Voltage - UL	300 V

TBP01R2 Series

Part	Current - IEC	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Positions Per Level	Number of Levels	Termination Style	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Current - UL	Voltage - IEC	Mounting Type	Contact Mating Finish	Pitch [x]	Pitch [x]	Header Orientation	Contact Material	Type	Color	Voltage - UL	Number of Positions	Features
CUI Devices TBP01R2-508-16BE	20 A	0.157 in	4 mm	UL94 V-0	16	1	Solder	16	-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V
CUI Devices TBP01R2-508-18BE	20 A	0.157 in	4 mm	UL94 V-0	18	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V	18
CUI Devices TBP01R2-508-05BE	20 A	0.157 in	4 mm	UL94 V-0	5	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V
CUI Devices TBP01R2W-508-04BE	20 A	0.157 in	4 mm	UL94 V-0	4	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V	4	Mating Flange
CUI Devices TBP01R2-508-03BE	20 A	0.157 in	4 mm	UL94 V-0	3	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V
CUI Devices TBP01R2-508-08BE	20 A	0.157 in	4 mm	UL94 V-0	8	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V	8
CUI Devices TBP01R2-508-10BE	20 A	0.157 in	4 mm	UL94 V-0	10	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V	10
CUI Devices TBP01R2-508-02BE	20 A	0.157 in	4 mm	UL94 V-0	2	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V	2
CUI Devices TBP01R2W-508-03BE	20 A	0.157 in	4 mm	UL94 V-0	3	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V		Mating Flange
CUI Devices TBP01R2-508-14BE	20 A	0.157 in	4 mm	UL94 V-0	14	1	Solder		-40 °C	105 ░C	0.472 in	12 mm	16 A	320 V	Through Hole	Tin	0.2 in	5.08 mm	Vertical	Copper Alloy	Header Male Pins Shrouded (4 Side)	Blue	300 V	14
