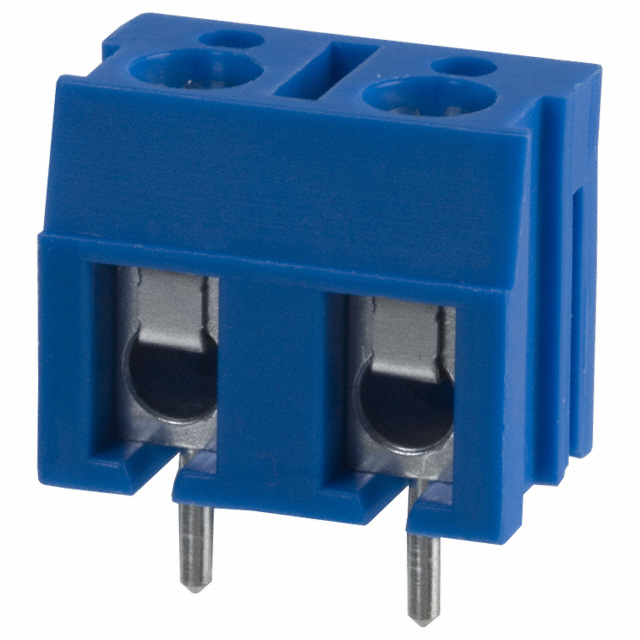

ED110/2DS

Active

On Shore Technology Inc.

TERM BLK 2POS SIDE ENT 7.5MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 2POS SIDE ENT 7.5MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	ED110/2DS

Clamp Material - Plating	Stainless, Steel
Color	Blue
Contact Material - Plating [custom]	Brass
Current	20 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.295 in
Pitch [x]	7.5 mm
Positions Per Level	2
Screw Thread	M3
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Voltage	300 V
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

Part	Positions Per Level	Contact Material - Plating [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Clamp Material - Plating	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Levels	Current	Screw Thread	Voltage	Wire Termination	Mating Orientation	Features	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Housing Material	Color
On Shore Technology Inc. ED110/3DS	3	Brass	-30 ░C	105 ░C	Stainless Steel	Through Hole	14 AWG	22 AWG	1	20 A	M3	300 V	Screw - Leaf Spring Wire Guard	Horizontal with Board	Interlocking (Side)	0.295 in	7.5 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Blue
On Shore Technology Inc. ED110/2DS	2	Brass	-30 ░C	105 ░C	Stainless Steel	Through Hole	14 AWG	22 AWG	1	20 A	M3	300 V	Screw - Leaf Spring Wire Guard	Horizontal with Board	Interlocking (Side)	0.295 in	7.5 mm	4.4 Lb-In	0.5 Nm	Polyamide (PA) Nylon	Blue

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Wire to Board Terminal Block Horizontal with Board 0.295" (7.50mm) Through Hole
