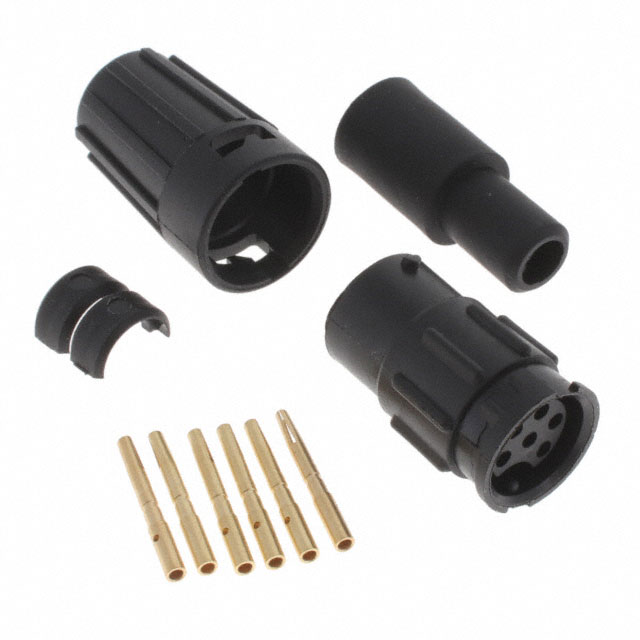

8280-6SG-519

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	8280-6SG-519

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [Max] [diameter]	0.21 in
Cable Opening [Max] [diameter]	5.33 mm
Cable Opening [Min] [diameter]	0.19 in
Cable Opening [Min] [diameter]	4.83 mm
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

Part	Contact Finish - Mating	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Connector Type	Fastening Type	Mounting Type	Orientation	Termination	Features	Ingress Protection	Color	Backshell Material, Plating	Applications	Number of Positions	Contact Material	Primary Material	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8280-6SG-311	Gold	600 V	-40 °C	115 °C	2.29 mm	0.09 in 0.14 in	3.56 mm	Varies by Wire Gauge	Receptacle Female Sockets	Bayonet Lock	Free Hanging (In-Line)	Keyed	Crimp	Backshell	Weathertight	Black	Nylon Polyamide (PA)	Automotive Communication Systems Instrumentation	6	Brass	Plastic	Unshielded
Conxall/Switchcraft 8280-6SG-3DC	Gold	600 V	-40 °C	115 °C				Varies by Wire Gauge	Receptacle Female Sockets	Bayonet Lock	Free Hanging (In-Line)	Keyed	Crimp	Backshell	Weathertight	Black	Nylon Polyamide (PA)	Automotive Communication Systems Instrumentation	6	Brass	Plastic	Unshielded
Conxall/Switchcraft 8280-6SG-519	Gold	600 V	-40 °C	115 °C				Varies by Wire Gauge	Receptacle Female Sockets	Bayonet Lock	Free Hanging (In-Line)	Keyed	Crimp	Backshell	Weathertight	Black	Nylon Polyamide (PA)	Automotive Communication Systems Instrumentation	6	Brass	Plastic	Unshielded	0.21 in	0.19 in	4.83 mm	5.33 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Female Sockets Crimp
