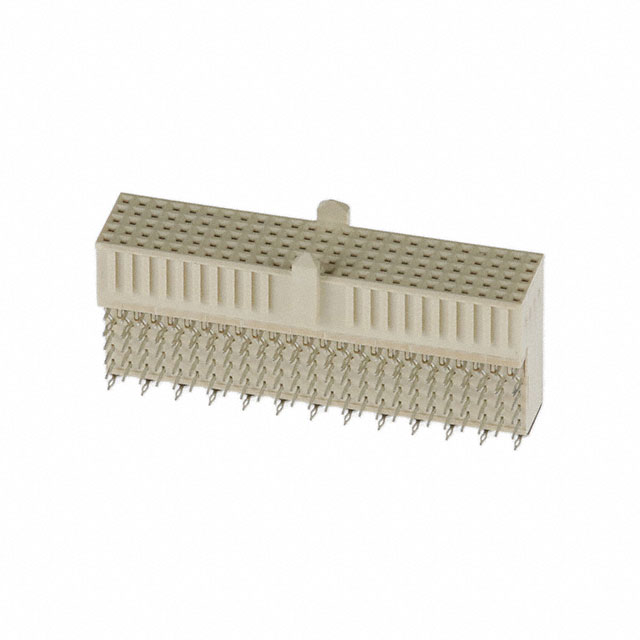

HM2R65PA5108N9LF

Active

Amphenol ICC (FCI)

CONN RECEPT 150POS 2MM PRESS-FIT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RECEPT 150POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

Specification	HM2R65PA5108N9LF

Connector Style	AB 25
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Current Rating (Amps)	1.5 A
Features	Upper Shield
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions [custom]	125
Number of Positions [custom]	25
Number of Positions Loaded	All
Number of Rows	5 + 1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit
Voltage Rating	750 Vrms

Part	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Voltage Rating	Termination	Mounting Type	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Current Rating (Amps)	Number of Positions Loaded	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Rows	Number of Positions	Connector Usage
Amphenol ICC (FCI) HM2R65PA5108N9LF	5 + 1	0.079 in	2 mm	Gold	750 Vrms	Press-Fit	Board Edge Right Angle Through Hole	125	25	Receptacle Female Sockets	1.5 A	All	0.76 Ám	30 Áin	AB 25	-55 °C	125 °C	Upper Shield
Amphenol ICC (FCI) HM2R65PA5108N9STLF		0.079 in	2 mm	Gold		Press-Fit	Board Edge Right Angle Through Hole			Receptacle Female Sockets	1.5 A	All			AB 25	-55 °C	125 °C	Board Guide	2 5	125	Backplane
Amphenol ICC (FCI) HM2R65PA510FAALF		0.079 in	2 mm	Gold	500 V	Press-Fit	Board Edge Right Angle Through Hole			Receptacle Female Sockets	1.5 A	All	0.76 Ám	30 Áin	AB 25	-55 °C	125 °C	Upper Shield	5	125
Amphenol ICC (FCI) HM2R65PA510FN9	5 + 1	0.079 in	2 mm	Gold	500 V	Press-Fit	Board Edge Right Angle Through Hole	125	25	Receptacle Female Sockets	1.5 A	All	0.76 Ám	30 Áin	AB 25	-55 °C	125 °C	Upper Shield
Amphenol ICC (FCI) HM2R65PE5108N9LF		0.079 in	2 mm	Gold		Press-Fit	Through Hole			Header Male Pins	1.5 A					-55 °C	125 °C				Backplane

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 (125 + 25 Ground) Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
