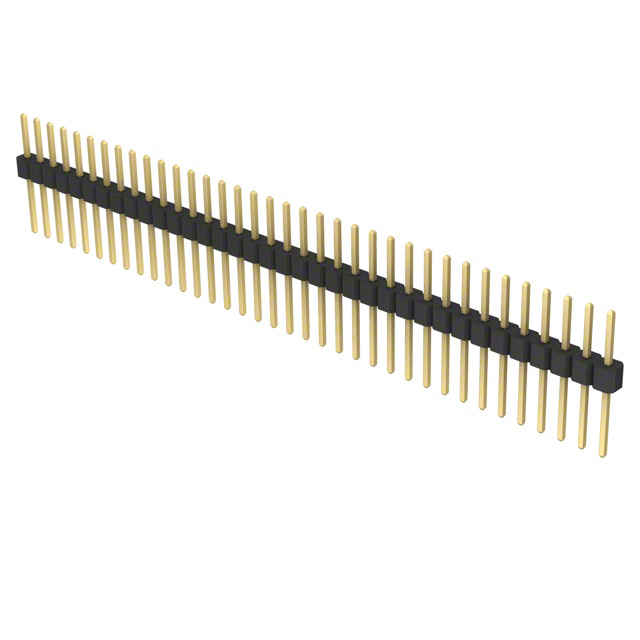

PRPC036SACN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 36POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC036SACN-RC

Active

Sullins Connector Solutions

CONN HEADER VERT 36POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC036SACN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.32 in
Contact Length - Post [x]	8.13 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	16.47 mm
Overall Contact Length	0.648 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC036 Series

Part	Material Flammability Rating	Number of Positions	Number of Rows	Shrouding	Termination	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Insulation Color	Style	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Material	Contact Shape	Mounting Type	Contact Type	Contact Finish - Post	Insulation Material	Connector Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Contact Length - Mating [x]	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Overall Contact Length	Insulation Height	Insulation Height	Contact Length - Mating
Sullins Connector Solutions PRPC036SFAN-RC	UL94 V-0	36	1	Unshrouded	Solder	Flash	0.098 in	2.5 mm	Black	Board to Board Cable	Push-Pull	0.12 in	3.05 mm	Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm	13.63 mm	0.537 "	0.318 "	8.08 mm
Sullins Connector Solutions PRPC036DFBN-RC	UL94 V-0	72	2	Unshrouded	Solder	Flash	0.098 in	2.5 mm	Black	Board to Board Cable	Push-Pull			Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm		16.17 mm	0.318 "	8.08 mm	2.54 mm	0.1 in	0.22 in	5.58 mm	0.637 in
Sullins Connector Solutions PRPC036SGAN-M71RC	UL94 V-0	36	1	Unshrouded	Solder	Flash	0.098 in	2.5 mm	Black	Board to Board Cable	Push-Pull	0.12 in	3.05 mm	Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole Right Angle	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm			0.318 "	8.08 mm
Sullins Connector Solutions PRPC036DBAN-M71RC	UL94 V-0	72	2	Unshrouded	Solder	Flash			Black	Board to Board Cable	Push-Pull	0.12 in	3.05 mm	Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole Right Angle	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm			0.23 in		2.54 mm	0.1 in				0.197 in	5 mm	5.84 mm
Sullins Connector Solutions PRPC036SADN-RC	UL94 V-0	36	1	Unshrouded	Solder	Flash	0.098 in	2.5 mm	Black	Board to Board Cable	Push-Pull	0.42 in	10.67 mm	Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm		19.01 mm	0.23 in						0.748 in			5.84 mm
Sullins Connector Solutions PRPC036DABN-RC	UL94 V-0	72	2	Unshrouded	Solder	Flash	0.098 in	2.5 mm	Black	Board to Board Cable	Push-Pull			Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm		14.18 mm	0.23 in		2.54 mm	0.1 in	0.23 in	5.84 mm	0.558 in			5.84 mm
Sullins Connector Solutions PRPC036SAAN-RC	UL94 V-0	36	1	Unshrouded	Solder	Flash	0.098 in	2.5 mm	Black	Board to Board Cable	Push-Pull	0.12 in	3.05 mm	Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm		11.39 mm	0.23 in						0.448 in			5.84 mm
Sullins Connector Solutions PRPC036DAAN-RC	UL94 V-0	72	2	Unshrouded	Solder	Flash	0.098 in	2.5 mm	Black	Board to Board Cable	Push-Pull	0.12 in	3.05 mm	Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm		11.39 mm	0.23 in		2.54 mm	0.1 in			0.448 in			5.84 mm
Sullins Connector Solutions PRPC036SACN-RC	UL94 V-0	36	1	Unshrouded	Solder	Flash	0.098 in	2.5 mm	Black	Board to Board Cable	Push-Pull	0.32 in	8.13 mm	Flash	3 A	-40 °C	105 ░C	Gold	Brass	Square	Through Hole	Male Pin	Gold	Polybutylene Terephthalate (PBT)	Breakaway Header	All	0.1 in	2.54 mm		16.47 mm	0.23 in						0.648 in			5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.40
		10	$ 1.07
		100	$ 0.82
		500	$ 0.69
		1000	$ 0.64
		5000	$ 0.58

Description

General part information

PRPC036 Series

Connector Header Through Hole 36 position 0.100" (2.54mm)
