ATS-PCB1072

Active

Advanced Thermal Solutions Inc.

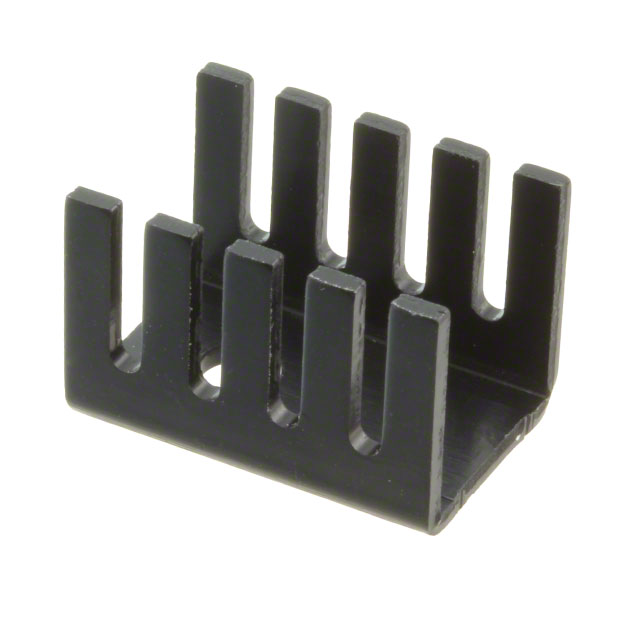

HEAT SINKS BGA HEAT SINK, BOARD LEVEL STAMP, NO TIM, BLACK, TO220, 19.05X13.21X12.7MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

ATS-PCB1072

Active

Advanced Thermal Solutions Inc.

HEAT SINKS BGA HEAT SINK, BOARD LEVEL STAMP, NO TIM, BLACK, TO220, 19.05X13.21X12.7MM

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-PCB1072

Attachment Method	Bolt On
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length	19.05 mm
Length	0.75 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	9.5 °C/W
Thermal Resistance @ Natural	24.4 °C/W
Type	Board Level
Width [x]	13.21 mm
Width [x]	0.52 in

standard Series

Heat Sinks BGA Heat Sink, Board Level Stamped, No TIM, Black, TO220, 19x22x11mm (LxWxH)

Part	Material Finish	Attachment Method	Type	Length	Length	Shape	Material	Fin Height	Fin Height	Package Cooled	Thermal Resistance @ Forced Air Flow	Thermal Resistance @ Natural	Width [x]	Width [x]	Width	Length [x]	Length [x]	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]
Advanced Thermal Solutions Inc. ATS-PCBT1075	Black Anodized	Bolt On	Board Level	0.52 in	13.2 mm	Rectangular Fins	Aluminum	0.319 in	8.1 mm	TO-126	25 °C/W 200 LFM	35.8 °C/W	19.68 mm	0.775 in
Advanced Thermal Solutions Inc. ATS-PCBT1092		Bolt On	Board Level			Rectangular Fins	Aluminum			TO-220	11 °C/W 200 LFM	23 °C/W		1.772 in	45 mm	30 mm	1.181 in	2 mm	0.079 "
Advanced Thermal Solutions Inc. ATS-PCB1033	Black Anodized	Bolt On PC Pin	Board Level Vertical	0.85 "	21.59 mm	Rectangular Fins	Aluminum			TO-220	9 °C/W 200 LFM	20 °C/W		1 in	25.4 mm					12.7 mm	0.5 in
Advanced Thermal Solutions Inc. ATS-PCB1064	Black Anodized	Clip	Board Level	0.748 in	19 mm	Rectangular Fins	Aluminum			TO-220	10.2 °C/W 200 LFM	27.3 °C/W	12.8 mm	0.504 in						12.7 mm	0.5 in
Advanced Thermal Solutions Inc. ATS-PCB1002	Black Anodized	Clip PC Pin	Board Level Vertical	0.748 in	19 mm	Rectangular Fins	Aluminum			TO-220 TO-262	10.2 °C/W 200 LFM	27.3 °C/W	12.8 mm	0.504 in						12.7 mm	0.5 in
Advanced Thermal Solutions Inc. ATS-PCBT1089	Black Anodized	Bolt On	Board Level			Fins Square	Aluminum	0.917 in	23.3 mm	TO-3	2.6 °C/W 200 LFM	6 °C/W	64 mm	2.52 "
Advanced Thermal Solutions Inc. ATS-PCB1035	Black Anodized	Bolt On PC Pin	Board Level Vertical	1.18 in	29.97 mm	Rectangular Fins	Aluminum			TO-220	7.3 °C/W 200 LFM	12.5 °C/W		1 in	25.4 mm					12.7 mm	0.5 in
Advanced Thermal Solutions Inc. ATS-PCB1043	Black Anodized	Bolt On	Board Level			Rhombus	Aluminum			TO-3	2.6 °C/W 200 LFM	7.5 °C/W	47.41 mm	1.867 "		63.67 mm	2.507 "			42.33 mm	1.667 in
Advanced Thermal Solutions Inc. ATS-PCB1050	Black Anodized	Bolt On PC Pin	Board Level Vertical	1.13 in	28.7 mm	Rectangular Fins	Aluminum			TO-220	4.9 °C/W 200 LFM	6.8 °C/W	48.26 mm	1.9 in						24.13 mm	0.95 in
Advanced Thermal Solutions Inc. ATS-PCB1072	Black Anodized	Bolt On	Board Level	0.75 in	19.05 mm	Rectangular Fins	Aluminum			TO-220	9.5 °C/W	24.4 °C/W	13.21 mm	0.52 in						12.7 mm	0.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.91
		10	$ 0.87
		25	$ 0.83
		50	$ 0.80
		100	$ 0.79
		250	$ 0.74
		500	$ 0.69
		1000	$ 0.63
		5000	$ 0.61
Sager	N/A	100	$ 0.79
		500	$ 0.76
		1000	$ 0.71
		2500	$ 0.63

Description

General part information

standard Series

Heat Sinks BGA Heat Sink, Board Level Stamped, No TIM, Black, TO220, 19x22x11mm (LxWxH)
