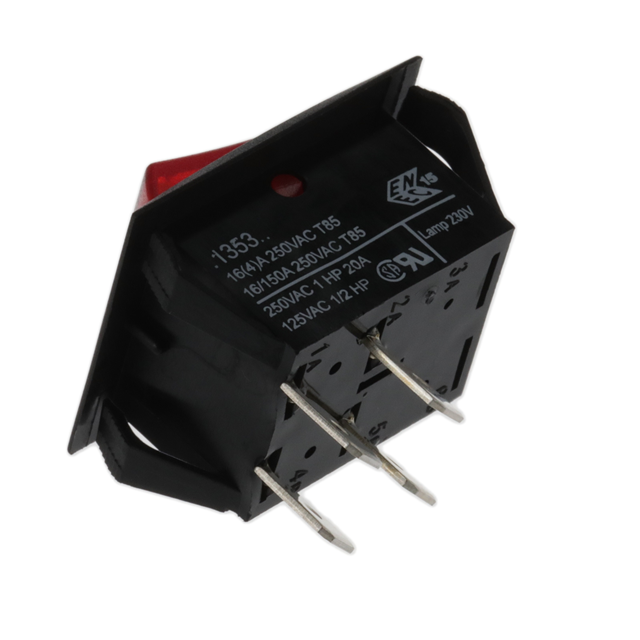

C1353ARBR3602AW

Active

BULGIN LIMITED

SWITCH ROCKER ON OFF DPST QUICK CONNECT CURVED ROCKER 20A 250VAC 72VDC 745.7VA

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH ROCKER ON OFF DPST QUICK CONNECT CURVED ROCKER 20A 250VAC 72VDC 745.7VA

Technical Specifications

Parameters and characteristics for this part

Specification	C1353ARBR3602AW

Actuator Marking	O -
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	CSA, UL
Circuit	DPST-NO
Color - Actuator/Cap	Red
Current Rating (Amps)	20 A
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	250 VAC
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	25.4 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V
Voltage Rating - DC	24 V

Part	Features	Termination Style	Actuator Type	Illumination Voltage (Nominal)	Voltage Rating - AC	Illumination Type, Color	Actuator Marking	Mounting Type	Circuit	Approval Agency	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - DC	Color - Actuator/Cap	Current Rating (Amps)
BULGIN LIMITED C1353ARBR2-602AW-B	Antimicrobial	Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	125 VAC	250 V	Neon Red	O -	Panel Mount Snap-In	DPST-NO	CSA UL	On-Off	25.4 mm	28.5 mm	24 V	Red	20 A
BULGIN LIMITED C1353ARBR3602AW		Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	250 VAC	250 V	Neon Red	O -	Panel Mount Snap-In	DPST-NO	CSA UL	On-Off	25.4 mm	28.5 mm	24 V	Red	20 A
BULGIN LIMITED C1353ARBR2		Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	125 VAC	250 V	Neon Red	No Marking	Panel Mount Snap-In	DPST-NO	CSA UL	On-Off	25.4 mm	28.5 mm	24 V	Red	20 A
BULGIN LIMITED C1353ARBR2-1091W		Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	125 VAC	250 V	Neon Red	O I	Panel Mount Snap-In	DPST-NO	CSA UL	On-Off	25.4 mm	28.5 mm	24 V	Red	20 A
BULGIN LIMITED C1353ARBR2-602AW		Quick Connect - 0.250" (6.3mm)	Concave (Curved) - Illuminated	125 VAC	250 V	Neon Red	O -	Panel Mount Snap-In	DPST-NO	CSA UL	On-Off	25.4 mm	28.5 mm	24 V	Red	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPST-NO 20A (AC/DC) 250 V Panel Mount, Snap-In
