140-513-417-011

Active

EDAC Inc.

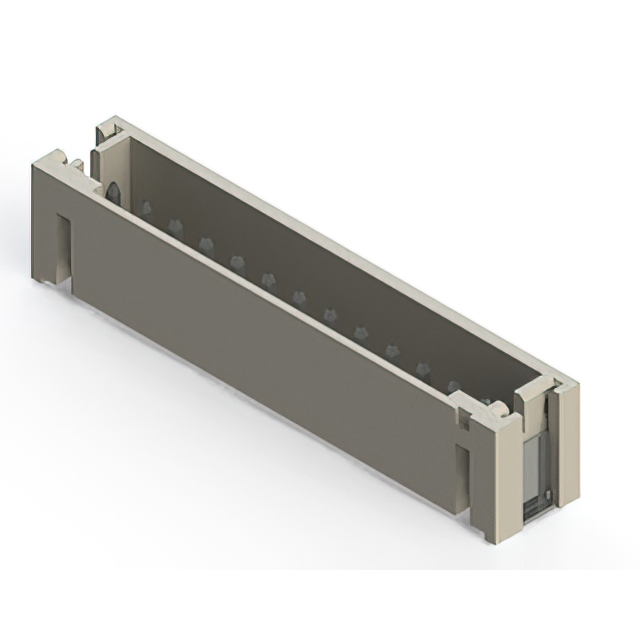

2.0MM PITCH CONNECTOR WITH 13 SU

Search across all available documentation for this part.

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 13 SU

Technical Specifications

Parameters and characteristics for this part

Specification	140-513-417-011

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Features	Solder Retention
Insulation Color	Natural
Insulation Height [custom]	5.51 mm
Insulation Height [custom]	0.217 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

Part	Contact Shape	Current Rating (Amps)	Style	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shrouding	Insulation Color	Number of Positions	Termination	Features	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Fastening Type	Insulation Material	Contact Material	Insulation Height [custom]	Insulation Height [custom]
EDAC Inc. 140-513-417-060	Square	2 A	Board to Cable/Wire	1	Male Pin	-25 °C	85 °C	Header	Shrouded - 4 Wall	Natural	13	Solder	Solder Retention	Tin	Surface Mount Right Angle	All	UL94 V-0	0.079 in	2 mm	100 VAC	Detent Lock	Nylon 9T Polyamide (PA9T)	Brass	5.51 mm	0.217 in
EDAC Inc. 140-513-417-011	Square	2 A	Board to Cable/Wire	1	Male Pin	-40 °C	105 ░C	Header	Shrouded - 4 Wall	Natural	13	Solder	Solder Retention	Tin	Surface Mount	All	UL94 V-0	0.079 in	2 mm	100 VAC	Detent Lock	Liquid Crystal Polymer (LCP)	Brass	5.51 mm	0.217 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.66

General part information

Connector Header Surface Mount 13 position 0.079" (2.00mm)
