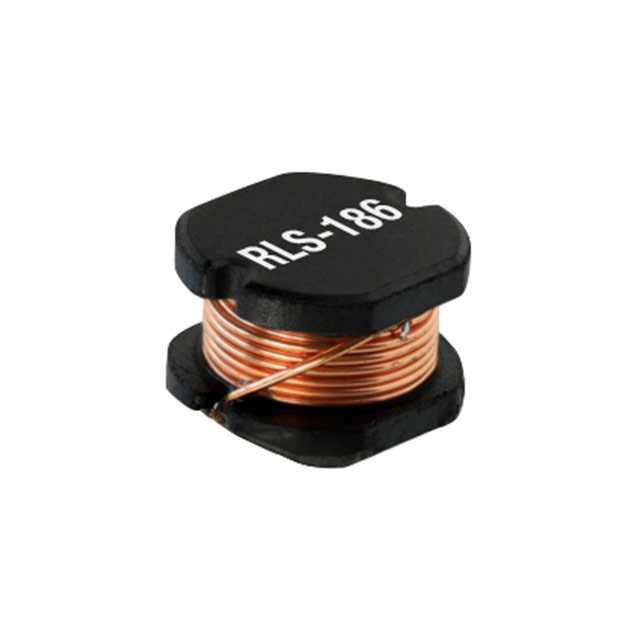

RLS-186-R
ActiveRECOM Power
POWER INDUCTOR (SMD), 18 ΜH, 1.89 A, UNSHIELDED, 2.14 A, RLS-186 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
RLS-186-R
ActiveRECOM Power
POWER INDUCTOR (SMD), 18 ΜH, 1.89 A, UNSHIELDED, 2.14 A, RLS-186 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RLS-186-R |
|---|---|
| Current - Saturation (Isat) | 2.14 A |
| DC Resistance (DCR) | 100 mOhm |
| Height - Seated (Max) [Max] | 0.217 in |
| Height - Seated (Max) [Max] | 5.5 mm |
| Inductance | 18 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 0.307 in |
| Size / Dimension [x] | 7.8 mm |
| Size / Dimension [y] | 0.276 in |
| Size / Dimension [y] | 7 mm |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.29 | |
| 5 | $ 1.27 | |||
| 10 | $ 1.25 | |||
| 25 | $ 1.22 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.03 | |||
| Digi-Reel® | 1 | $ 1.29 | ||
| 5 | $ 1.27 | |||
| 10 | $ 1.25 | |||
| 25 | $ 1.22 | |||
| 50 | $ 1.18 | |||
| 100 | $ 1.14 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.03 | |||
| Tape & Reel (TR) | 1000 | $ 1.05 | ||
| Newark | Each | 1000 | $ 1.10 | |
| Sager | N/A | 1 | $ 1.46 | |
| 5 | $ 1.23 | |||
| 10 | $ 1.18 | |||
| 25 | $ 1.13 | |||
| 50 | $ 1.12 | |||
| 100 | $ 1.09 | |||
| 250 | $ 1.05 | |||
Description
General part information
RLS-186 Series
Power Inductors - SMD Line Inductors for RECOM Power Supply
