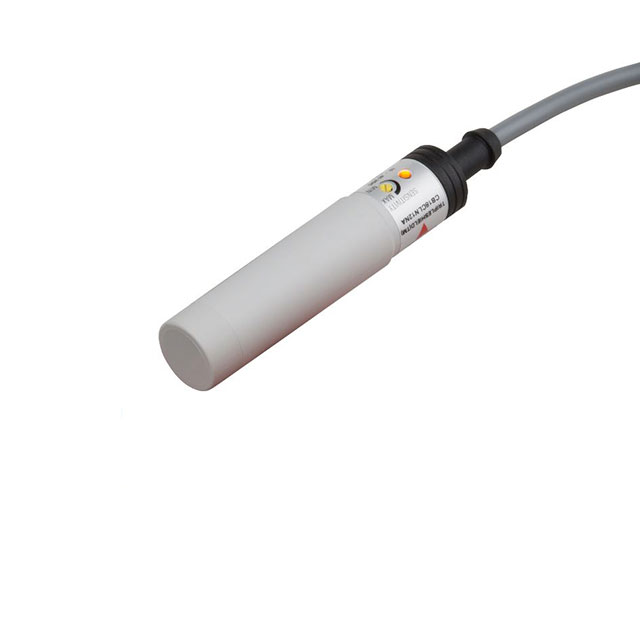

CB18CLN12NA
ActiveCARLO GAVAZZI
SENSOR: CAPACITIVE; RANGE: 3÷12MM; OUT: NPN / NO / NC; 2M; CB18CLN
Deep-Dive with AI
Search across all available documentation for this part.
CB18CLN12NA
ActiveCARLO GAVAZZI
SENSOR: CAPACITIVE; RANGE: 3÷12MM; OUT: NPN / NO / NC; 2M; CB18CLN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CB18CLN12NA |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | NEMA 4, NEMA 13, NEMA 1, IP67, NEMA 6, NEMA 3 |
| Material - Body | Plastic |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -25 °C |
| Output Type | NPN-NC/NO, 4-Wire |
| Package / Case | Cylinder |
| Response Frequency | 30 Hz |
| Sensing Distance | 0.472 in |
| Sensing Distance | 12 mm |
| Sensor Type | Capacitive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply [Max] | 40 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| TME | N/A | 1 | $ 112.11 | |
| 5 | $ 104.63 | |||
| 10 | $ 97.16 | |||
Description
General part information
CB18CLN12 Series
SENSOR: CAPACITIVE; RANGE: 3÷12MM; OUT: NPN / NO / NC; 2M; CB18CLN
Documents
Technical documentation and resources
No documents available
