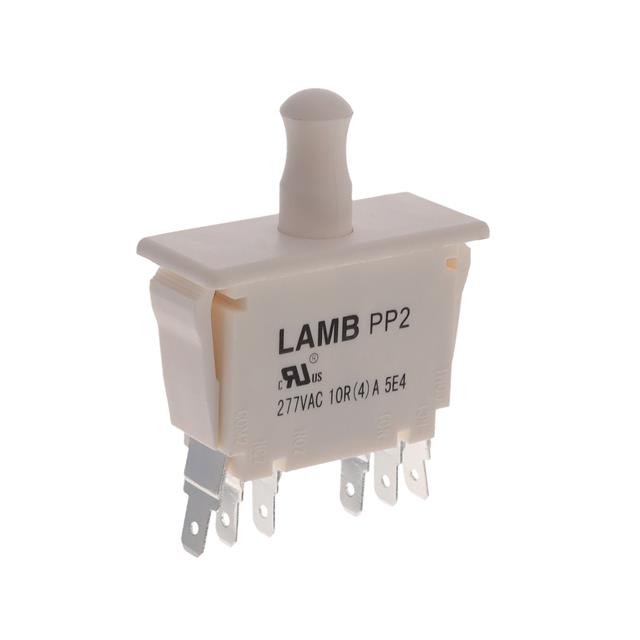

PP2-7U1-2B2
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 3; DP3T; 10A/277VAC; WHITE; ON PANEL; PP2
Deep-Dive with AI
Search across all available documentation for this part.
PP2-7U1-2B2
ActiveE-Switch
SWITCH: PUSH-BUTTON; POS: 3; DP3T; 10A/277VAC; WHITE; ON PANEL; PP2
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PP2-7U1-2B2 |
|---|---|
| Actuator Type | Push-Pull Plunger |
| Circuit | DPDT |
| Current Rating (Amps) | 10 A |
| Electrical Life | 6000 Cycles |
| Ingress Protection | IP40 |
| Mounting Type | Panel Mount, Snap-In |
| Operating Force | 330 gf |
| Operating Position | 15.5 mm |
| Operating Position | 0.61 in |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Switch Function | On-On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.71 | |
| 10 | $ 4.50 | |||
| 54 | $ 3.81 | |||
| 108 | $ 3.77 | |||
Description
General part information
pp2 Series
Switch DPDT Panel Mount, Snap-In
