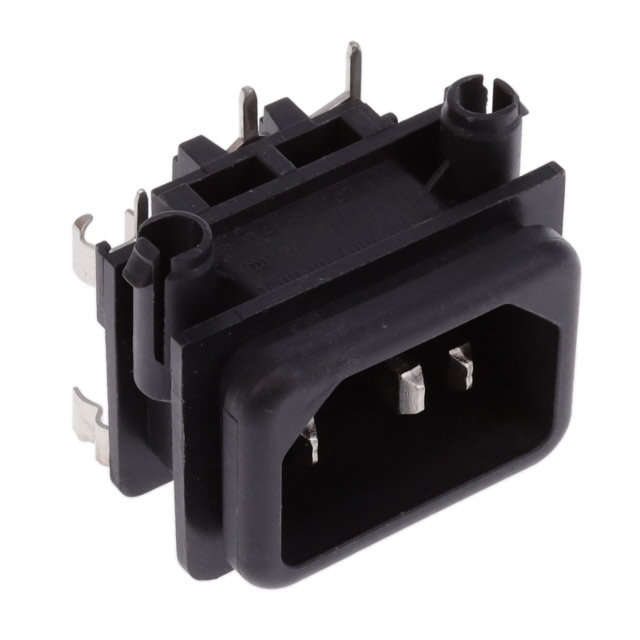

GSF1.1202.41

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.1202.41

Accomodates a Fuse	True
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Thickness	2 mm
Panel Thickness	0.079 in
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Fuse Holder, Drawer	Connector Type	Filter Type	Voltage Rating - Appliance Inlet	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Termination	Panel Thickness	Panel Thickness	Material Flammability Rating	Connector Style	Accomodates a Fuse	Current Rating - Appliance Inlet	Mounting Type	Ingress Protection
SCHURTER Inc. GSF1.1202.01	Fuse Holder	Receptacle Male Blades - Module	Unfiltered - Commercial	250 VAC	CCC CSA ENEC UL	30.3 mm	22.3 mm	Solder	0.236 in	6 mm	UL94 V-0	IEC 320-C14		10 A	Panel Mount Snap-In Through Hole Right Angle	IP40
SCHURTER Inc. GSF1.1202.41	Fuse Holder	Receptacle Male Blades - Module	Unfiltered - Commercial	250 VAC	CCC CSA ENEC UL			Solder	0.079 in	2 mm	UL94 V-0	IEC 320-C14		10 A	Panel Mount Snap-In Through Hole Right Angle	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 3.99

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
