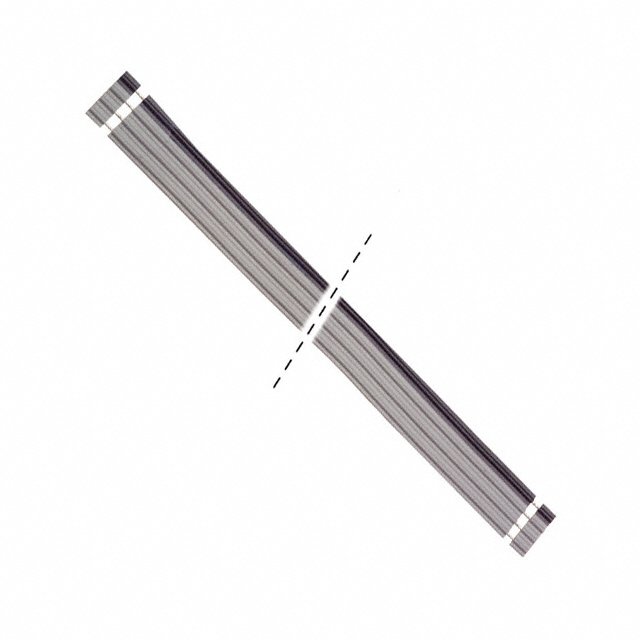

0281000269

Obsolete

Molex

CABLE JUMPER 4POS 2.54MM 4"

Search across all available documentation for this part.

Obsolete

Molex

CABLE JUMPER 4POS 2.54MM 4"

Technical Specifications

Parameters and characteristics for this part

Specification	0281000269

Cable Type	Ribbon
Length	4 in
Length	101.6 mm
Length - Exposed Ends [x]	0.125 in
Length - Exposed Ends [x]	3.18 mm
Number of Conductors	4
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination Style	Completely Exposed Wires on Both Sides with Protective Tab

Part	Cable Type	Pitch [x]	Pitch [x]	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors	Termination Style
Molex 0281000286	Ribbon	2.54 mm	0.1 in	152.4 mm	6 in	0.125 in	3.18 mm	8	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000293	Ribbon	2.54 mm	0.1 in	101.6 mm	4 in	0.125 in	3.18 mm	10	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000266	Ribbon	2.54 mm	0.1 in	152.4 mm	6 in	0.125 in	3.18 mm	3	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000276	Ribbon	2.54 mm	0.1 in	50.8 mm	2 in	0.125 in	3.18 mm	6	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000272	Ribbon	2.54 mm	0.1 in	50.8 mm	2 in	0.125 in	3.18 mm	5	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000280	Ribbon	2.54 mm	0.1 in	50.8 mm	2 in	0.125 in	3.18 mm	7	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000597	Ribbon	2.54 mm	0.1 in			0.125 in	3.18 mm		Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000288	Ribbon	2.54 mm	0.1 in	50.8 mm	2 in	0.125 in	3.18 mm	9	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000278	Ribbon	2.54 mm	0.1 in	152.4 mm	6 in	0.125 in	3.18 mm	6	Completely Exposed Wires on Both Sides with Protective Tab
Molex 0281000269	Ribbon	2.54 mm	0.1 in	101.6 mm	4 in	0.125 in	3.18 mm	4	Completely Exposed Wires on Both Sides with Protective Tab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Ribbon Cable 0.100" (2.54mm) 4.000" (101.60mm)

Technical documentation and resources

No documents available
