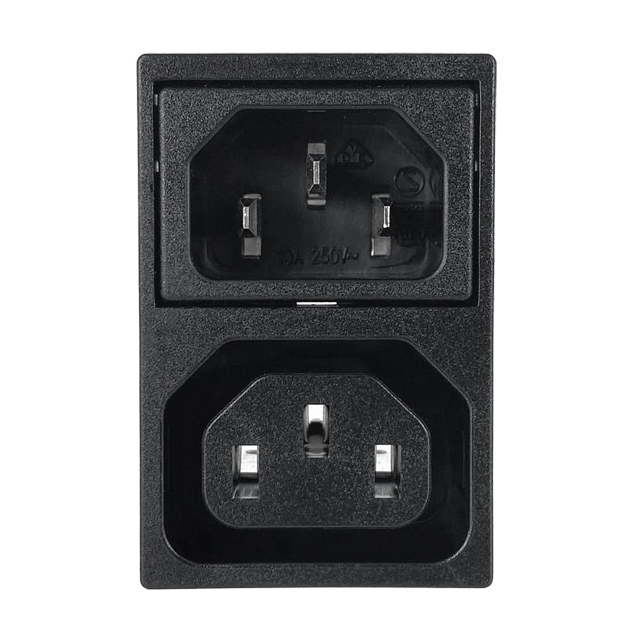

774W-10/01
ActiveQualtek
PWR ENT INLET/OUTLET IEC320-C13
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
774W-10/01
ActiveQualtek
PWR ENT INLET/OUTLET IEC320-C13
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 774W-10/01 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CSA, cURus |
| Connector Style | IEC 320-C13 |
| Connector Type | Receptacle, Female Sockets, Receptacle, Male Blades |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 2 |
| Number of Positions | 3 |
| Panel Cutout Dimensions [x] | 50.7 mm |
| Panel Cutout Dimensions [y] | 33.5 mm |
| Panel Thickness | 1 mm |
| Panel Thickness | 0.039 in |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.30 | |
| 10 | $ 2.09 | |||
| 25 | $ 1.98 | |||
| 50 | $ 1.93 | |||
| 100 | $ 1.84 | |||
| 250 | $ 1.62 | |||
Description
General part information
774W-10 Series
Power Entry Connector Receptacle, Female Sockets; Receptacle, Male Blades IEC 320-C13 Panel Mount, Snap-In
