6022BG

Active

Boyd Laconia, LLC

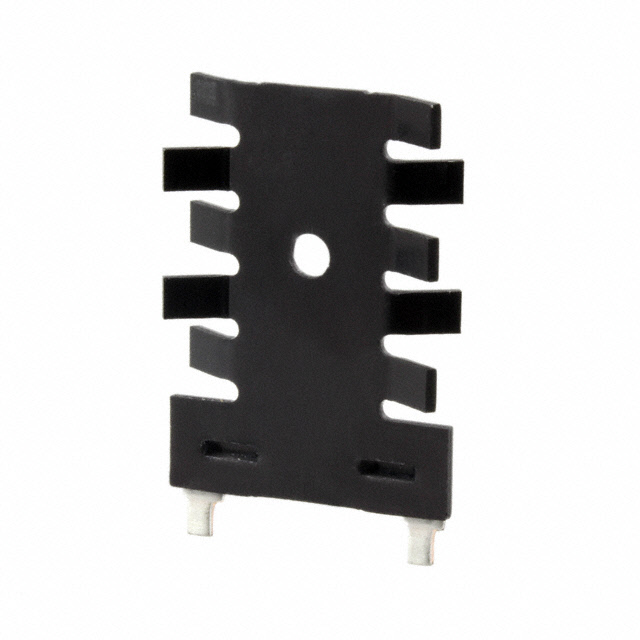

HEATSINK TO-220 STAGGERED FIN

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK TO-220 STAGGERED FIN

Technical Specifications

Parameters and characteristics for this part

Specification	6022BG

Attachment Method	PC Pin, Bolt On
Fin Height [z]	6.35 mm
Fin Height [z]	0.25 in
Length	30.73 mm
Length	1.21 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	2 W, 40 °C
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	400 LFM, 6 °C/W
Thermal Resistance @ Natural	16.7 °C/W
Type	Board Level, Vertical
Width	22.22 mm
Width	0.875 in

Part	Power Dissipation @ Temperature Rise	Type	Shape	Material	Package Cooled	Length	Length	Width	Width	Fin Height [z]	Fin Height [z]	Material Finish	Thermal Resistance @ Forced Air Flow	Attachment Method	Thermal Resistance @ Natural
Boyd Laconia, LLC 6022BG	2 W 40 °C	Board Level Vertical	Rectangular Fins	Aluminum	TO-220	30.73 mm	1.21 in	22.22 mm	0.875 in	6.35 mm	0.25 in	Black Anodized	6 °C/W 400 LFM	Bolt On PC Pin	16.7 °C/W
