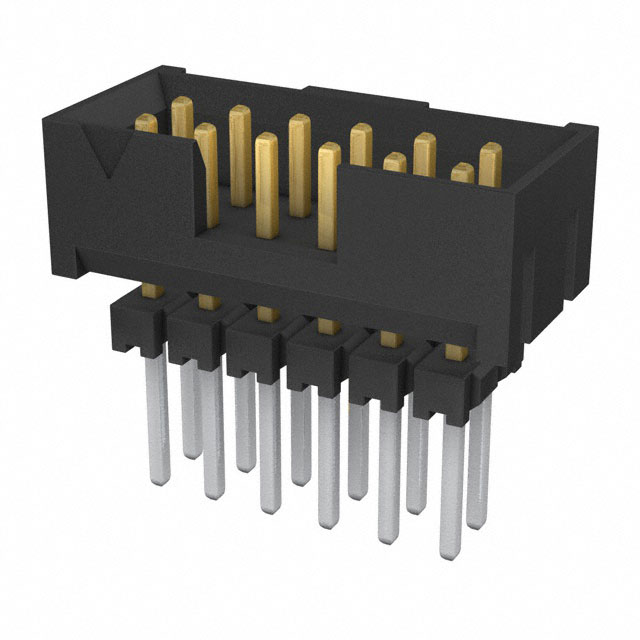

ZLTMM-106-73-L-D-280

Active

Samtec Inc.

CONN HEADER VERT 12POS 2MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 12POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	ZLTMM-106-73-L-D-280

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	5.11 mm
Contact Length - Post	0.201 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.28 in
Insulation Height	7.1 mm
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	12.09 mm
Overall Contact Length	0.476 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Contact Shape	Contact Material	Fastening Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Shrouding	Insulation Material	Number of Rows	Contact Finish - Mating	Number of Positions	Features	Termination	Insulation Height	Insulation Height	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Number of Positions Loaded	Contact Length - Post [x]
Samtec Inc. ZLTMM-106-73-L-D-280	Square	Phosphor Bronze	Push-Pull	12.09 mm	0.476 in	5.11 mm	0.201 in	10 çin	0.25 çm	Black	0.079 in	2 mm	Through Hole	Shrouded - 4 Wall	Nylon Polyamide (PA)	2	Gold	12	Keying Slot	Solder	0.28 in	7.1 mm	Tin	3.05 mm	0.12 in	Male Pin	-55 °C	125 °C	0.079 in	2 mm	Elevated Header	All
Samtec Inc. ZLTMM-106-66-F-D-509	Square	Phosphor Bronze	Push-Pull	15.09 mm	0.594 in	2.79 mm		3 µin	0.076 µm	Black	0.079 in	2 mm	Through Hole	Shrouded - 4 Wall	Nylon Polyamide (PA)	2	Gold	12	Keying Slot	Solder	0.509 in	12.93 mm	Tin	3.05 mm	0.12 in	Male Pin	-55 °C	125 °C	0.079 in	2 mm	Elevated Header	All	0.11 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.39

General part information

Connector Header Through Hole 12 position 0.079" (2.00mm)
