MLX92251LSE-AAA-000-SP

Active

Melexis Technologies NV

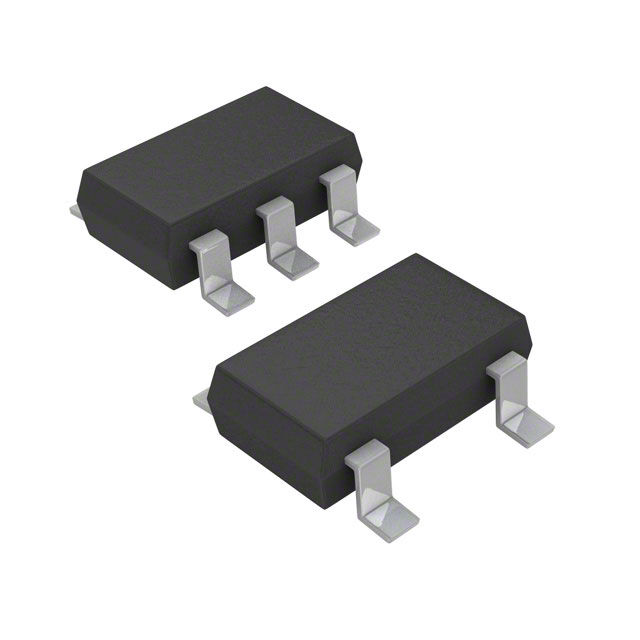

MAG SWITCH HALL EFFECT TSOT5

Search across all available documentation for this part.

Active

Melexis Technologies NV

MAG SWITCH HALL EFFECT TSOT5

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Range [Min]	Sensing Range [Max]	Output Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Supply (Max) [Max]	Current - Output (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function	Package / Case	Supplier Device Package	Polarization	Test Condition [Max]	Test Condition [Min]	Technology	Mounting Type
Melexis Technologies NV MLX92251LSE-ABA-000-RE	-4.5 mT	4.5 mT	Open Drain	2.7 V	24 V	7 mA	20 mA	-40 °C	150 °C	Dual Latch	SOT-23-5 Thin TSOT-23-5	TSOT-5	South Pole	150 °C	-40 °C	Hall Effect	Surface Mount
Melexis Technologies NV MLX92251LSE-AAA-000-SP											SOT-23-5 Thin TSOT-23-5	TSOT-5					Surface Mount
Melexis Technologies NV MLX92251LSE-AAA-000-RE	-10 mT	10 mT	Open Drain	2.7 V	24 V	7 mA	20 mA	-40 °C	150 °C	Dual Latch	SOT-23-5 Thin TSOT-23-5	TSOT-5	South Pole	150 °C	-40 °C	Hall Effect	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.61

General part information

Digital Switch TSOT-5
