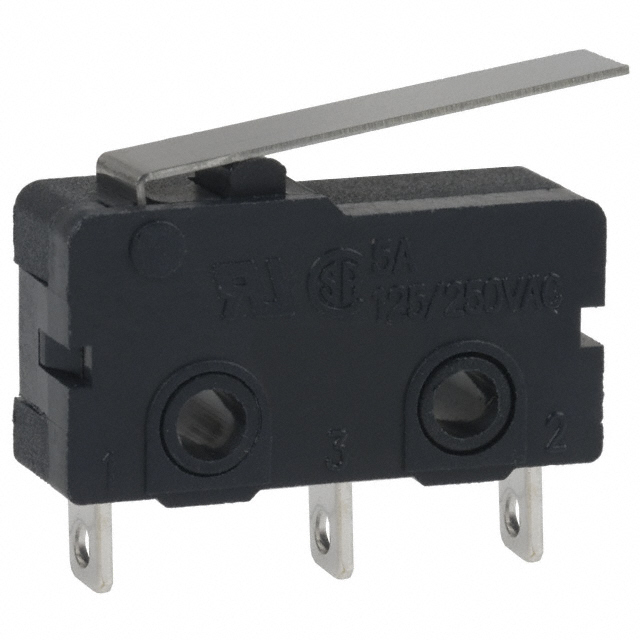

ZM50E10C01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsZ Series Install Instr Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZM50E10C01

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.81 mm
Differential Travel	0.032 in
Electrical Life	6000 Cycles
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	33 gf
Operating Position	11.8 mm
Operating Position	0.465 in
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.6 mm
Overtravel	0.025 "
Pretravel	4 mm
Pretravel	0.157 in
Release Force	8 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

ZM50 Series

Part	Pretravel	Pretravel	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Termination Style	Circuit	Voltage Rating - AC	Current Rating (Amps)	Differential Travel	Differential Travel	Operating Force	Mechanical Life	Actuator Type	Release Force	Ingress Protection	Overtravel	Overtravel	Switch Function	Electrical Life	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions ZM50E10B01	3.6 mm	0.14 in	125 °C	-40 °C	Chassis Mount	Solder Lug	SPDT	125 V	5 A	0.8 mm	0.031 "	40 gf	5000000 Cycles	Lever Straight	6 gf	IP40	0.024 in	0.6 mm	On-Mom
Honeywell Sensing and Productivity Solutions ZM50E70C01	4 mm	0.158 in	125 °C	-40 °C	Chassis Mount	Quick Connect - 0.110" (2.8mm)	SPDT	125 V	5 A	0.8 mm	0.031 "	36 gf	5000000 Cycles	Lever Straight	6 gf	IP40	0.024 in	0.6 mm	On-Mom
Honeywell Sensing and Productivity Solutions ZM50G70S03-A			125 °C	-40 °C	Chassis Mount	Quick Connect - 0.110" (2.8mm)		125 V	5 A				5000000 Cycles			IP40			Off-Mom
Honeywell Sensing and Productivity Solutions ZM50E10C01	4 mm	0.157 in	120 °C	-40 °C	Chassis Mount	Solder Lug	SPDT	125 V	5 A	0.81 mm	0.032 in	33 gf	10000000 Cycles	Lever Straight	8 gf		0.025 "	0.6 mm	On-Mom	6000 Cycles	11.8 mm	0.465 in
Honeywell Sensing and Productivity Solutions ZM50B50F01			125 °C	-40 °C	Through Hole Right Angle	PC Pin	SPDT	125 V	5 A				5000000 Cycles	Lever Roller		IP40			On-Mom
Honeywell Sensing and Productivity Solutions ZM50E50A01	1.1 mm	0.043 "	125 °C	-40 °C	Through Hole Right Angle	PC Pin	SPDT	125 V	5 A	0.2 mm	0.008 in	146 gf	5000000 Cycles	Round (Pin Plunger)	35 gf	IP40	0.015 "	0.4 mm	On-Mom
Honeywell Sensing and Productivity Solutions ZM50D10F01	3.8 mm	0.15 in	125 °C	-40 °C	Chassis Mount	Solder Lug	SPDT	125 V	5 A	0.8 mm	0.031 "		5000000 Cycles	Lever Roller	6 gf	IP40	0.031 in	0.8 mm	On-Mom
