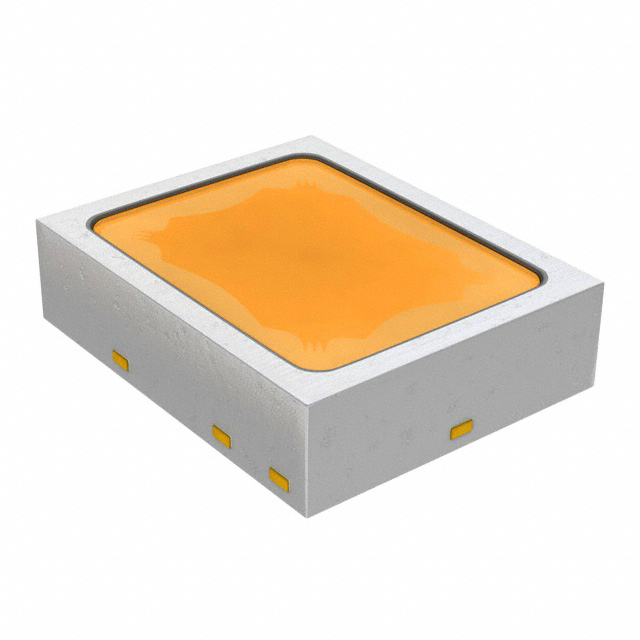

MP-2016-1100-57-80

Active

Luminus Devices Inc.

SINGLE COLOR LED, COOL WHITE, 1.7MM,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP-2016-1100-57-80

Active

Luminus Devices Inc.

SINGLE COLOR LED, COOL WHITE, 1.7MM,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP-2016-1100-57-80

CCT (K)	5700 K
Color	Cool, White
CRI (Color Rendering Index)	80
Current - Max [Max]	120 mA
Current - Test	60 mA
Flux @ 25°C, Current - Test	23 lm
Height - Seated (Max) [Max] [z]	0.52 mm
Height - Seated (Max) [Max] [z]	0.02 "
Lumens/Watt @ Current - Test	128 lm/W
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	2016
Viewing Angle	110 °
Voltage - Forward (Vf) (Typ)	3 V

MP-2016 Series

Part	CCT (K)	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Current - Test	Package / Case	Viewing Angle	Thermal Resistance of Package [diameter]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Flux @ 25°C, Current - Test	Mounting Type	Supplier Device Package	CRI (Color Rendering Index)	Color	Lumens/Watt @ Current - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Luminus Devices Inc. MP-2016-2100-50-90	5000 K	6.1 V	120 mA	60 mA	0806 (2016 Metric)	110 °	27 °C/W	2 mm	0.063 in	1.6 mm	0.079 in	46 lm	Surface Mount	2016	90	Cool White	126 lm/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-2016-2100-30-80		6.1 V	120 mA	60 mA	0806 (2016 Metric)	110 °	27 °C/W	2 mm	0.063 in	1.6 mm	0.079 in	49 lm	Surface Mount	2016	80	Warm White		0.52 mm	0.02 "
Luminus Devices Inc. MP-2016-1100-30-90		3 V	120 mA	60 mA	0806 (2016 Metric)	110 °		2 mm	0.063 in	1.6 mm	0.079 in	22 lm	Surface Mount	2016	90	Warm White	122 lm/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-2016-1100-65-70	6500 K	3 V	120 mA	60 mA	0806 (2016 Metric)	110 °		2 mm	0.063 in	1.6 mm	0.079 in	26 lm	Surface Mount	2016	70	Cool White	144 lm/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-2016-1100-35-80	3500 K	3 V	120 mA	60 mA	0806 (2016 Metric)	110 °	27 °C/W	2 mm	0.063 in	1.6 mm	0.079 in	24 lm	Surface Mount	2016	80	Warm White	133 lm/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-2016-1100-27-90	2700 K	3 V	120 mA	60 mA	0806 (2016 Metric)	110 °		2 mm	0.063 in	1.6 mm	0.079 in	22 lm	Surface Mount	2016	90	Warm White	122 lm/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-2016-1100-57-80	5700 K	3 V	120 mA	60 mA	0806 (2016 Metric)	110 °		2 mm	0.063 in	1.6 mm	0.079 in	23 lm	Surface Mount	2016	80	Cool White	128 lm/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-2016-1100-22-80	2200 K	3 V	120 mA	60 mA	0806 (2016 Metric)	110 °	27 °C/W	2 mm	0.063 in	1.6 mm	0.079 in	20 lm	Surface Mount	2016	80	Warm White	111 lm/W	0.52 mm	0.02 "
Luminus Devices Inc. MP-2016-2100-22-80	2200 K	6.1 V	120 mA	60 mA	0806 (2016 Metric)	110 °	27 °C/W	2 mm	0.063 in	1.6 mm	0.079 in	38 lm	Surface Mount	2016	80	Warm White	104 lm/W	0.52 mm	0.02 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.05
		100	$ 0.04
		500	$ 0.03
		1000	$ 0.03
		2000	$ 0.02
	Digi-Reel®	1	$ 0.10
		10	$ 0.05
		100	$ 0.04
		500	$ 0.03
		1000	$ 0.03
		2000	$ 0.02
	Tape & Reel (TR)	5000	$ 0.02
		10000	$ 0.02
		15000	$ 0.02
		25000	$ 0.02
		35000	$ 0.02
		50000	$ 0.02
		125000	$ 0.02
		250000	$ 0.02
		500000	$ 0.02

Description

General part information

MP-2016 Series

LED Lighting MP-2016 White, Cool 5700K 3V 60mA 110° 0806 (2016 Metric)
