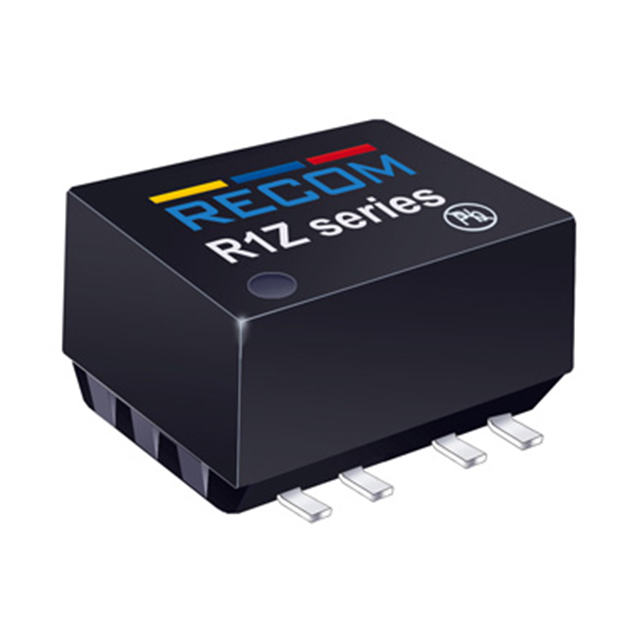

R1Z-1209

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD CONV DC/DC 1W 12VIN 09VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

R1Z-1209

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD CONV DC/DC 1W 12VIN 09VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R1Z-1209

Applications	ITE (Commercial), Medical
Efficiency	60 %
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	10-SMD Module, 6 Leads
Size / Dimension [x]	0.6 in
Size / Dimension [x]	15.2 mm
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	9 mm
Size / Dimension [z]	0.35 "
Type	Isolated Module
Voltage - Input (Max) [Max]	12.6 V
Voltage - Input (Min) [Min]	11.4 V
Voltage - Isolation	1000 V
Voltage - Output 1	9 V

R1Z-3.33.3 Series

Isolated DC/DC Converters - SMD 1W 24Vin 12Vout 84mA SMD 6 Pin

...

Part	Efficiency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Min) [Min]	Applications	Mounting Type	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Features
RECOM Power R1Z-153.3/H-R	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module	303 mA	1	14.25 V	ITE (Commercial) Medical	Surface Mount	3.3 V	2000 V	15.75 V	-40 °C	70 °C	10-SMD Module 6 Leads
RECOM Power R1Z-1209/P-R	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module		1	11.4 V	ITE (Commercial) Medical	Surface Mount	9 V	1000 V	12.6 V	-40 °C	70 °C	10-SMD Module 6 Leads	SCP
RECOM Power R1Z-1209	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module		1	11.4 V	ITE (Commercial) Medical	Surface Mount	9 V	1000 V	12.6 V	-40 °C	70 °C	10-SMD Module 6 Leads
RECOM Power R1Z-1205-R	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module	200 mA	1	11.4 V	ITE (Commercial) Medical	Surface Mount	5 V	1000 V	12.6 V	-40 °C	70 °C	10-SMD Module 6 Leads
RECOM Power R1Z-123.3/H-R	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module	303 mA	1	11.4 V	ITE (Commercial) Medical	Surface Mount	3.3 V	2000 V	12.6 V	-40 °C	70 °C	10-SMD Module 6 Leads
RECOM Power R1Z-053.3/HP-R	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module	200 mA	1	4.75 V	ITE (Commercial) Medical	Surface Mount	3.3 V	2000 V	5.25 V	-40 °C	70 °C	10-SMD Module 6 Leads	SCP
RECOM Power R1Z-2412/P-R	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module	84 mA	1	22.8 V	ITE (Commercial) Medical	Surface Mount	12 V	1000 V	25.2 V	-40 °C	70 °C	10-SMD Module 6 Leads	SCP
RECOM Power R1Z-3.33.3/HP	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module	200 mA	1	3.1 V	ITE (Commercial) Medical	Surface Mount	3.3 V	2000 V	3.5 V	-40 °C	70 °C	10-SMD Module 6 Leads	SCP
RECOM Power R1Z-1515/P	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module	66 mA	1	14.25 V	ITE (Commercial) Medical	Surface Mount	15 V	1000 V	15.75 V	-40 °C	70 °C	10-SMD Module 6 Leads	SCP
RECOM Power R1Z-3.305-R	60 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	Isolated Module	200 mA	1	3.1 V	ITE (Commercial) Medical	Surface Mount	5 V	1000 V	3.5 V	-40 °C	70 °C	10-SMD Module 6 Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	33	$ 15.01
Sager	N/A	1	$ 15.50
		5	$ 15.00
		10	$ 14.29
		25	$ 13.87
		50	$ 13.66
		100	$ 13.29
		250	$ 12.39

Description

General part information

R1Z-3.33.3 Series

Isolated DC/DC Converters - SMD 1W 24Vin 12Vout 84mA SMD 6 Pin

Documents

Technical documentation and resources

Datasheet

Document
