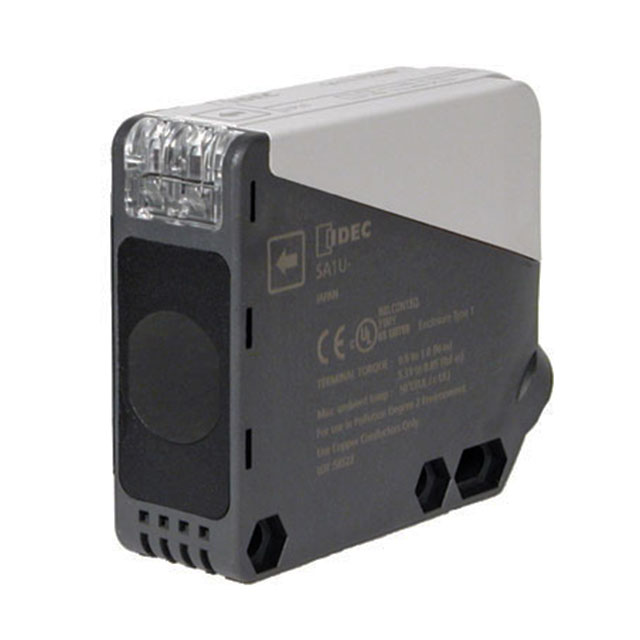

SA1U-P07M
ActiveIDEC
PHOTOELECTRIC SENSOR, SA1U SERIES, 7 M, RETROREFLECTIVE, RELAY, 10 V TO 30 V, NO TIME DELAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SA1U-P07M |
|---|---|
| Adjustment Type | Adjustable |
| Connection Method | Terminal Block |
| Ingress Protection | IP67 |
| Light Source | Red (660nm) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Output Configuration | SPDT |
| Response Time | 20 ms |
| Sensing Distance | 275.591 in |
| Sensing Distance | 7 m |
| Sensing Method | Polarized, Retroreflective |
| Voltage - Supply [Max] | 240 VAC, 240 VDC |
| Voltage - Supply [Min] | 24 VAC, 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SA1U-P07 Series
Retroreflective, Polarized Optical Sensor 275.591" (7m) SPDT
