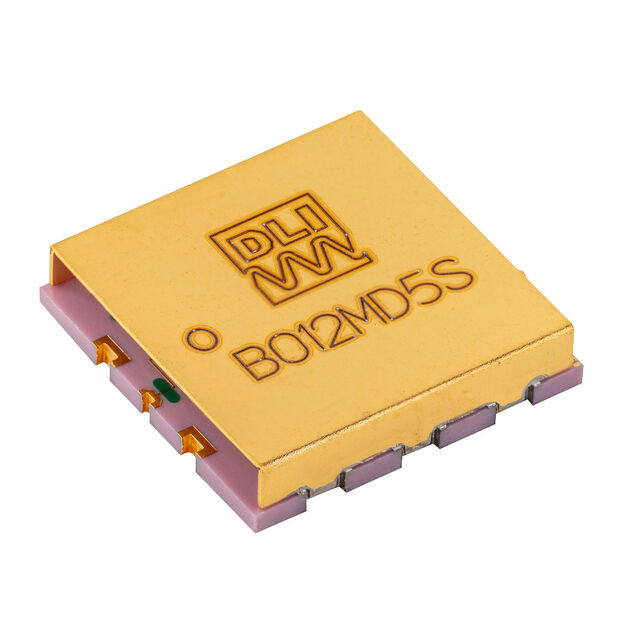

B012MD5S
ActiveKnowles Johanson Manufacturing
RF FILTER BANDPASS 1.227GHZ 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsSM Bandpass Filter Brochure
B012MD5S
ActiveKnowles Johanson Manufacturing
RF FILTER BANDPASS 1.227GHZ 6SMD
Deep-Dive with AI
DocumentsSM Bandpass Filter Brochure
Technical Specifications
Parameters and characteristics for this part
| Specification | B012MD5S |
|---|---|
| Bandwidth | 14 MHz |
| Filter Type | Band Pass |
| Frequency | 1.227 GHz |
| Height (Max) [Max] | 0.113 in |
| Height (Max) [Max] | 2.87 mm |
| Insertion Loss | 3.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 11.68 mm |
| Size / Dimension [x] | 0.46 in |
| Size / Dimension [y] | 0.46 " |
| Size / Dimension [y] | 11.68 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 109.59 | |
| 10 | $ 89.36 | |||
| 25 | $ 82.37 | |||
| 50 | $ 81.38 | |||
Description
General part information
B012MD Series
1.227GHz Center Frequency Band Pass RF Filter (Radio Frequency) 14MHz Bandwidth 3.5dB 6-SMD, No Lead
