MF125-BR2

Active

Visual Communications Company - VCC

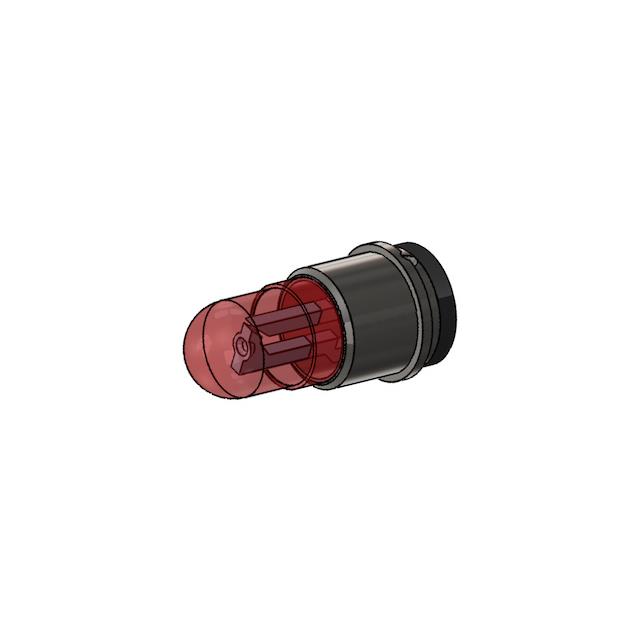

LED LAMP T-1 3/4 FLANGE

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

LED LAMP T-1 3/4 FLANGE

Technical Specifications

Parameters and characteristics for this part

Specification	MF125-BR2

Applications	General Purpose Lighting
Base Type	Midget Flange
Can Replace Lamps	Multiple Midget Flange Base Lamps
Color	Red
Configuration	Single
Millicandela Rating	14 mcd
Size / Dimension [diameter]	0.12 "
Size / Dimension [diameter]	3.05 mm
Size / Dimension [z]	0.358 in
Size / Dimension [z]	9.1 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength	635 nm

Part	Color	Applications	Base Type	Configuration	Wavelength	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [diameter]	Can Replace Lamps
Visual Communications Company - VCC MF125-BR2	Red	General Purpose Lighting	Midget Flange	Single	635 nm	2 V	14 mcd	0.358 in	0.12 "	9.1 mm	3.05 mm	Multiple Midget Flange Base Lamps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 4.86

General part information

LED Lamp Replacement Red Midget Flange 2V 0.120" Dia x 0.358" H (3.05mm x 9.10mm)

Technical documentation and resources

No documents available
