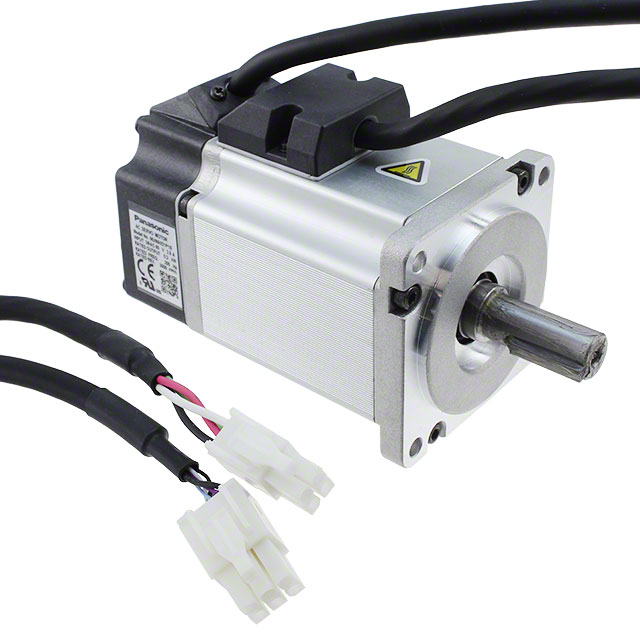

MUMA021P1S
ObsoletePanasonic Industrial Automation Sales
SERVOMOTOR 3000 RPM 100V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MUMA021P1S
ObsoletePanasonic Industrial Automation Sales
SERVOMOTOR 3000 RPM 100V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MUMA021P1S |
|---|---|
| Approval Agency | TUV, CE, CSA, UL, cULus |
| Diameter - Shaft [diameter] | 11 mm |
| Diameter - Shaft [diameter] | 0.433 in |
| Encoder Type | Incremental |
| Features | Key |
| Function | Servomotor |
| Length - Shaft and Bearing [x] | 30 mm |
| Length - Shaft and Bearing [x] | 1.181 in |
| Mounting Hole Spacing | 70 mm |
| Mounting Hole Spacing | 2.756 in |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power - Rated | 200 W |
| RPM | 3000 RPM |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 2.362 in |
| Size / Dimension [y] | 60 mm |
| Termination Style | Cable with Connector |
| Torque - Max Momentary (oz-in / mNm) | 1910 mNm |
| Torque - Max Momentary (oz-in / mNm) | 270.5 oz-in |
| Torque - Rated (oz-in / mNm) | 90.65 oz-in |
| Torque - Rated (oz-in / mNm) | 640 mNm |
| Type | AC Motor |
| Voltage - Rated | 100 VAC |
| Weight | 1 kg |
| Weight | 2.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MUMA021 Series
AC Motor Servomotor 3000 RPM 200W Incremental 100VAC
