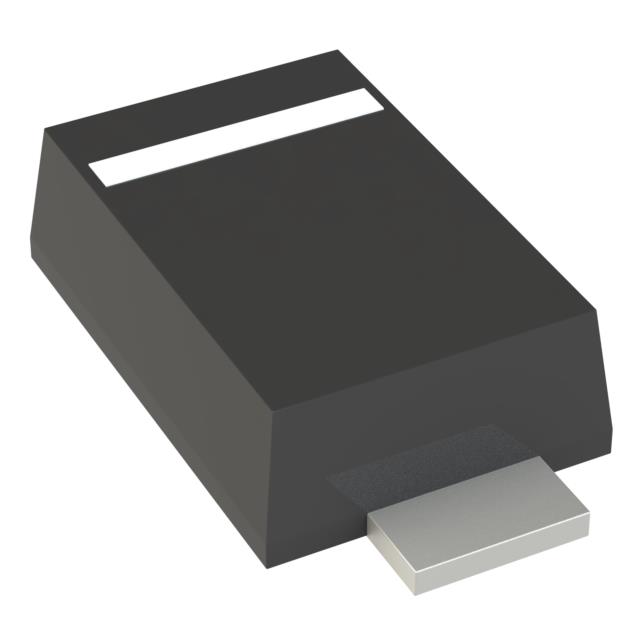

SMD320HE1-TP

Active

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	SMD320HE1-TP

Current - Average Rectified (Io)	3 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123H
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123HE1
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If [Max]	850 mV

Part	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Current - Average Rectified (Io)	Supplier Device Package	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Technology	Mounting Type
Micro Commercial Components SMD320HE1-TP	200 mA 500 ns	200 V	10 µA	SOD-123H	850 mV	3 A	SOD-123HE1	-55 °C	125 °C	Schottky	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6000	$ 0.07

General part information

Diode 200 V 3A Surface Mount SOD-123HE1

Technical documentation and resources

No documents available
