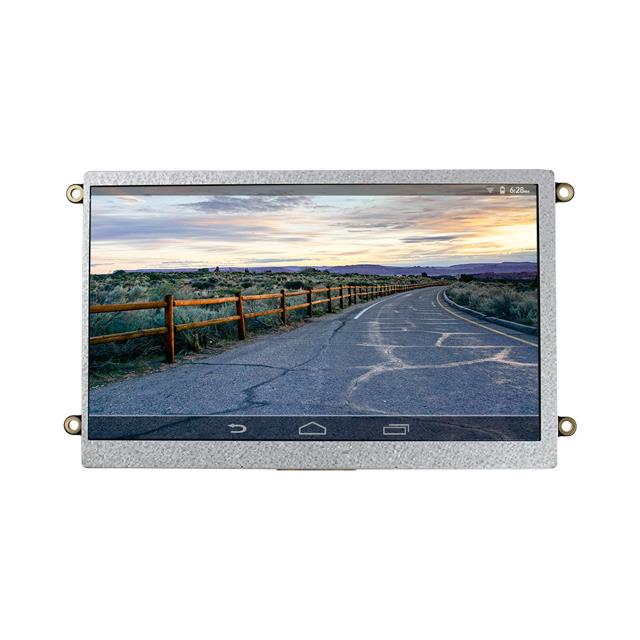

NHD-10.1-HDMI-A-RSXV

Obsolete

Newhaven Display Intl

10.1HDMI USB-HID W/AUDIO

Search across all available documentation for this part.

Obsolete

Newhaven Display Intl

10.1HDMI USB-HID W/AUDIO

Technical Specifications

Parameters and characteristics for this part

Part	Controller Type	Display Type	Display Mode	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Backlight	Interface	Dot Pixels [x]	Dot Pixels [y]	Graphics Color	Viewing Area [x]	Viewing Area [y]	Touchscreen
Newhaven Display Intl NHD-10.1-1024600MB-LSXV	HX8282-A	TFT - Color	Transmissive	256.54 mm	10.1 in	LED - White	LVDS	1024	600 pixels	Blue Green Red	222.72 mm	125.28 mm
Newhaven Display Intl NHD-10.1-HDMI-A-RSXV	ADV7611	TFT - Color	Transmissive	256.54 mm	10.1 in	LED - White	HDMI	1024	600 pixels	Blue Green Red	222.72 mm	125.28 mm
Newhaven Display Intl NHD-10.1-1024600MB-LSXV-CTP	FT5526EEZ HX8282-A	TFT - Color	Transmissive	256.54 mm	10.1 in	LED - White	LVDS	1024	600 pixels	Blue Green Red	222.72 mm	125.28 mm	Capacitive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color HDMI 10.1" (256.54mm) 1024 x 600

Technical documentation and resources
